Schenker SMART 100 User Manual

4 – MOUNTING AND INSTALLATION COD.100S12/24.D.2018
EN
THE PRESENT MANUAL BELONGS TO - Schenker Italia - ALL RIGHTS RESERVED
23

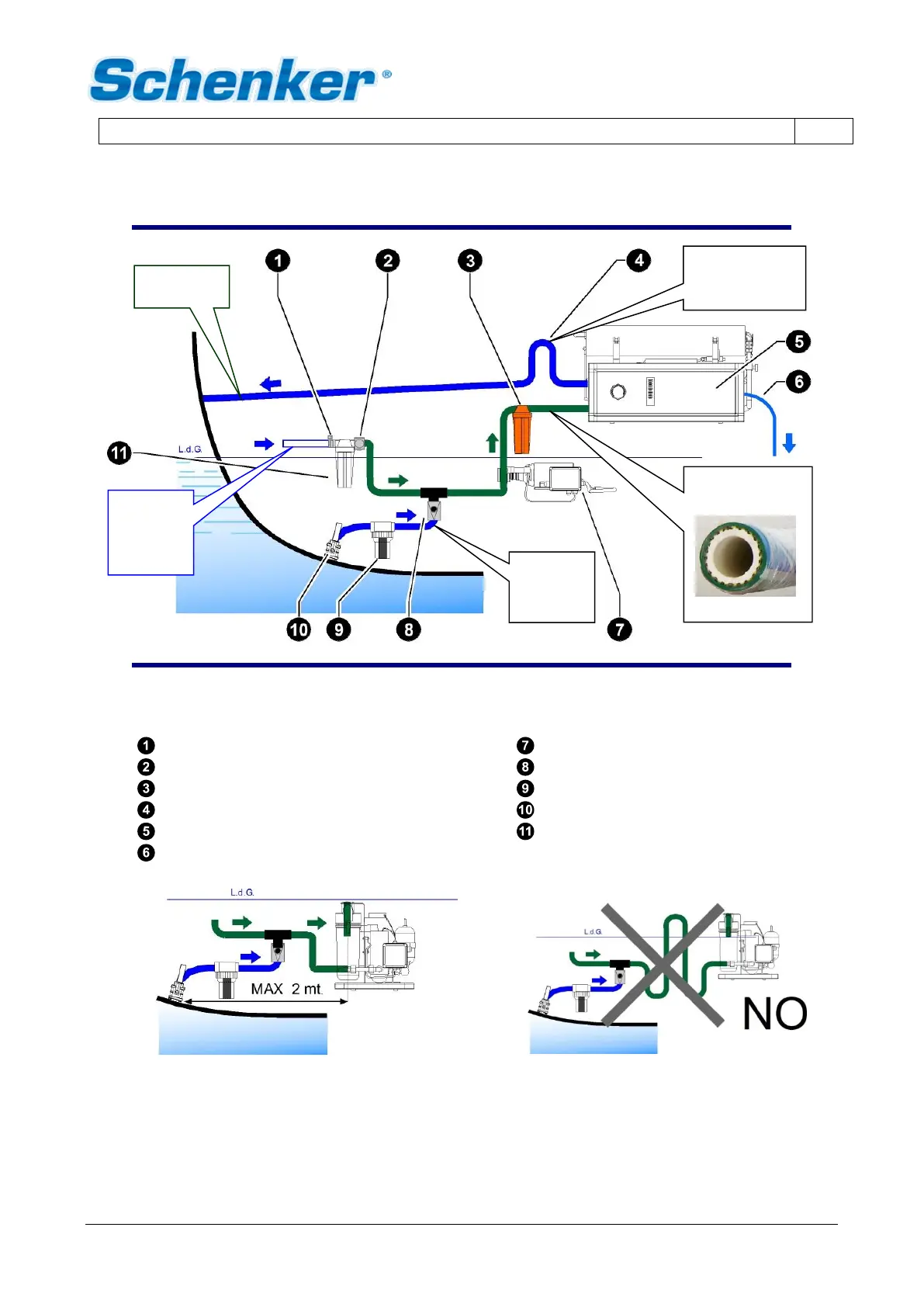

4.4 Hydraulic connections
HYDRAULIC CONNECTION AND PIPES
FIG. 4-1
Pressurized fresh water valve
Pump group
Elecrovalve
Non return valve
5 micron filter
Net filter
Swan neck upward - Disharge
Water inlet
Watermaker
Active carbon filter
Fresh water outlet
The hydraulic section that is continuously under consistent pressure is the pump outlet – 5 m. filter –
watermaker inlet connections . For this section is necessary to use a good quality PN 16 min. reinforced
hose. An inadequate hose could burst, jeopardizing seriously the safety of the boat.
Plumb to
pressure
side of
boat fresh
water
system
Exhausted
discharge
“Armovin”
type hose
int. dia. 20
mm.
Reinforced hose
PN16 min int. dia.
20 mm.
“Armovin”
type hose
int. dia. 16 mm.
