4.5 Electric connection
ATTENTION
These steps have to be performed by a qualified technician/operator, by referring to the
electrical drawings provided within this document.
4.5.1 Remote control panel mounting
The remote control panel has the following dimensions:
width 135 mm. height 116 mm.
It can be fixed on any internal boat panel, provided that the area behind is free of humidity and condense and
there is enough depth to house the rear part of the panel (approx. 8 cm.).
The cut to be performed on the boat covering panel, to encase the remote control panel, has the following
dimensions:
width 115 mm. height 97 mm.
The remote control panel can be connected through the pre-wired multiple cable of a 10mt standard length
provided. It is possible to adapt the panel to a longer distance by adding a one more cable in series to the one
provided.

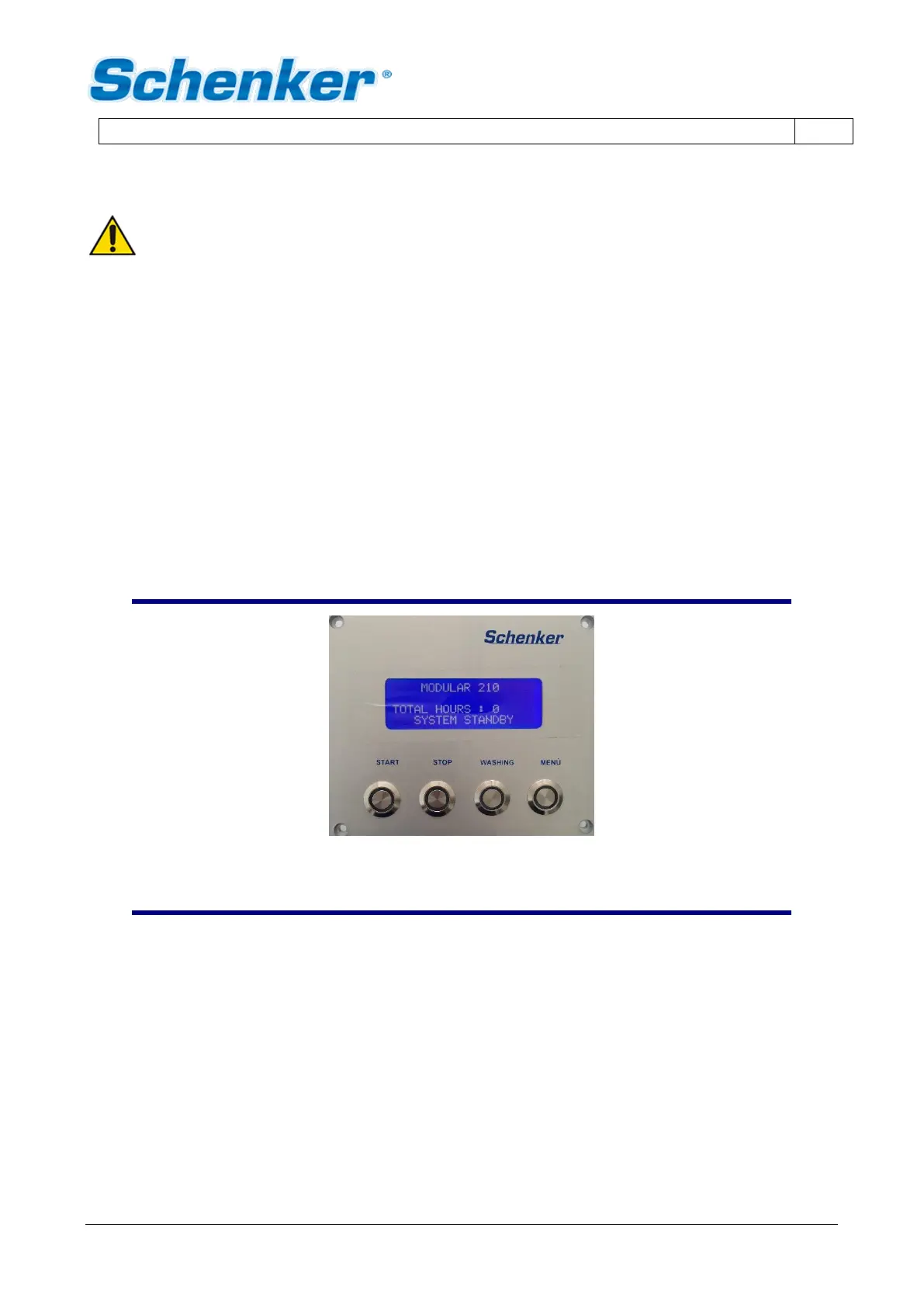

REMOTE CONTROL PANEL
FIG. 4-3
