Schenker SMART 30 User Manual

4 – MOUNTING AND INSTALLATION COD.30S12/24.A.2018
EN
THE PRESENT MANUAL BELONGS TO - Schenker Italia - ALL RIGHTS RESERVED
23
4.4 Hydraulic connections

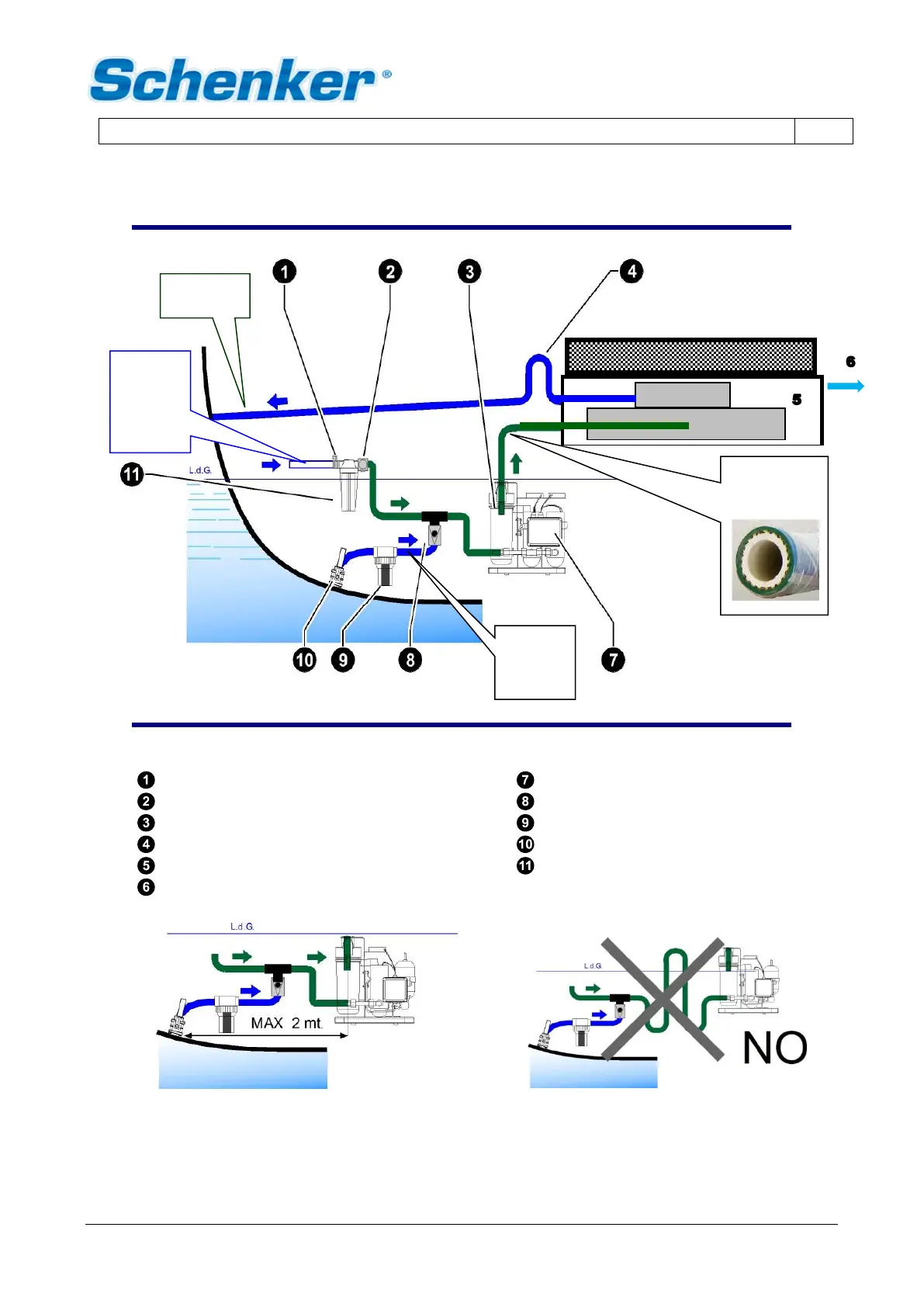

HYDRAULIC CONNECTION AND PIPES
FIG. 4-1
Pressurized fresh water valve
Pump
Elecrovalve
Non return valve
5 micron filter
Net filter
Swan neck upward - Disharge
Water inlet
Watermaker
Active carbon filter
Fresh water outlet
All the hydraulic connections (to exception of the fresh water production) have to be realized with a 16 mm.
int. diam. hose and a ½” holder. The hydraulic section that is continuously under consistent pressure is the
pump outlet – 5 m. filter – watermaker inlet connections . For this section is necessary to use a good quality
PN 16 min. reinforced hose. An inadequate hose could burst, jeopardizing seriously the safety of the boat.
“Armovin”
type hose
int. dia.
16 mm.
Reinforced
hose PN15
min int. dia.
16 mm.
Exhausted
discharge
Plumb to
pressure
side of
boat fresh
water
system
