Installation and commissioning DATAEAGLE 4XXX Compact 4-2
Chapter 4 – Installation of new devices
4.2. Install unit on top-hat rail


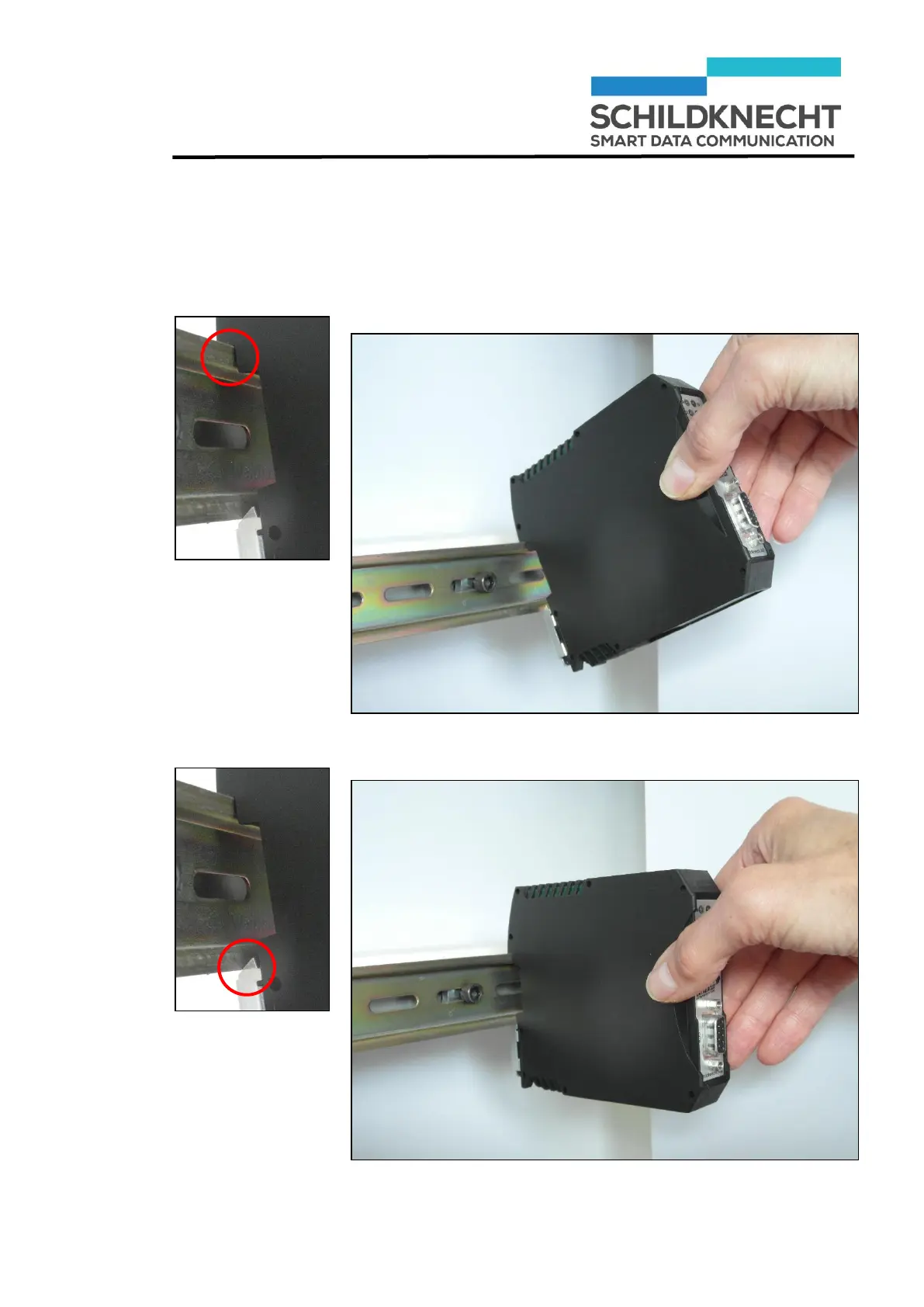

Place the unit diagonally from above on the top-hat rail.

Press the unit strongly downwards.
Nose above the
top-hat rail
Foot catch
snaps in
