schildknecht DATAEAGLE COMPACT 4 Series - Radio Module

Installation and commissioning DATAEAGLE 4XXX Compact 3-2
Chapter 3 – Structure

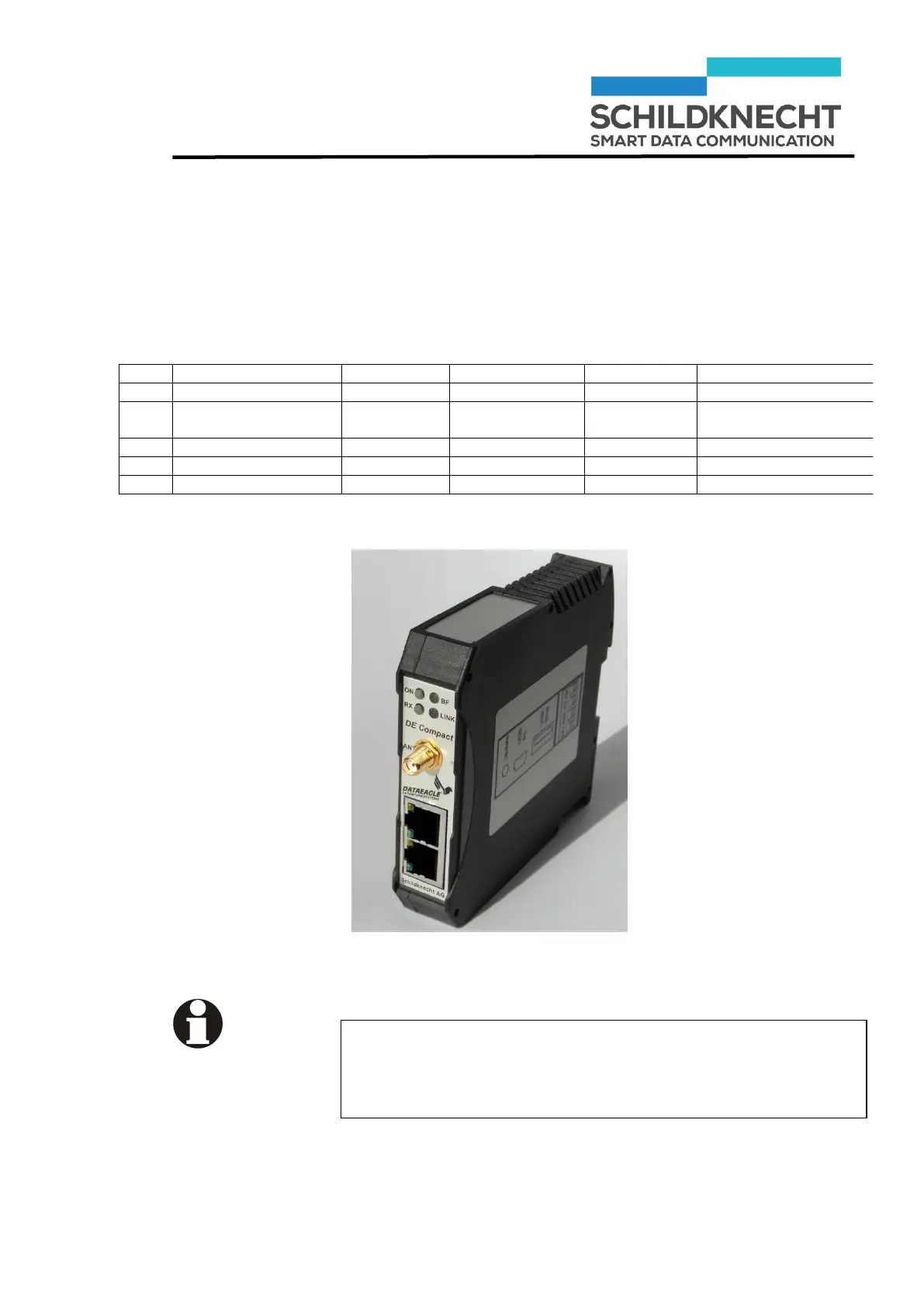

3.2. Radio module
The radio module transmits the signals via radio and is avail-
able in two radio technologies.
Radio modules are configured with the software Dataeagle
Wizard (see chapter 5.1)
New devices are pre-configured in the factory.
Further settings are not necessary.
Type
Radio Technology
Ethernet
Profinet-Devices
Safety Nodes
Radio-Slaves
4710
2,4 GHz BT / 100mW
10/ 100MBit
--
--
max. 4
4712
2,4 GHz BT / 100mW
10/ 100MBit
max. 6
max. 16
max. 4 (PN)
max. 1 (openSAEFTY)
4713
2,4 GHz BT / 100mW
10/ 100MBit
max. 6
--
max. 4
4715
2,4 GHz BT / 100mW
10/ 100MBit
max. 4
--
max. 1
4333
869 MHz / 500mW
10/ 100MBit
max. 4
--
max. 4
