schildknecht DATAEAGLE COMPACT 4 Series - Remove Wiring; Remove Old Module; Install New Module

Installation and commissioning DATAEAGLE 4XXX Compact 5-20
Chapter 5 – Extension and exchange

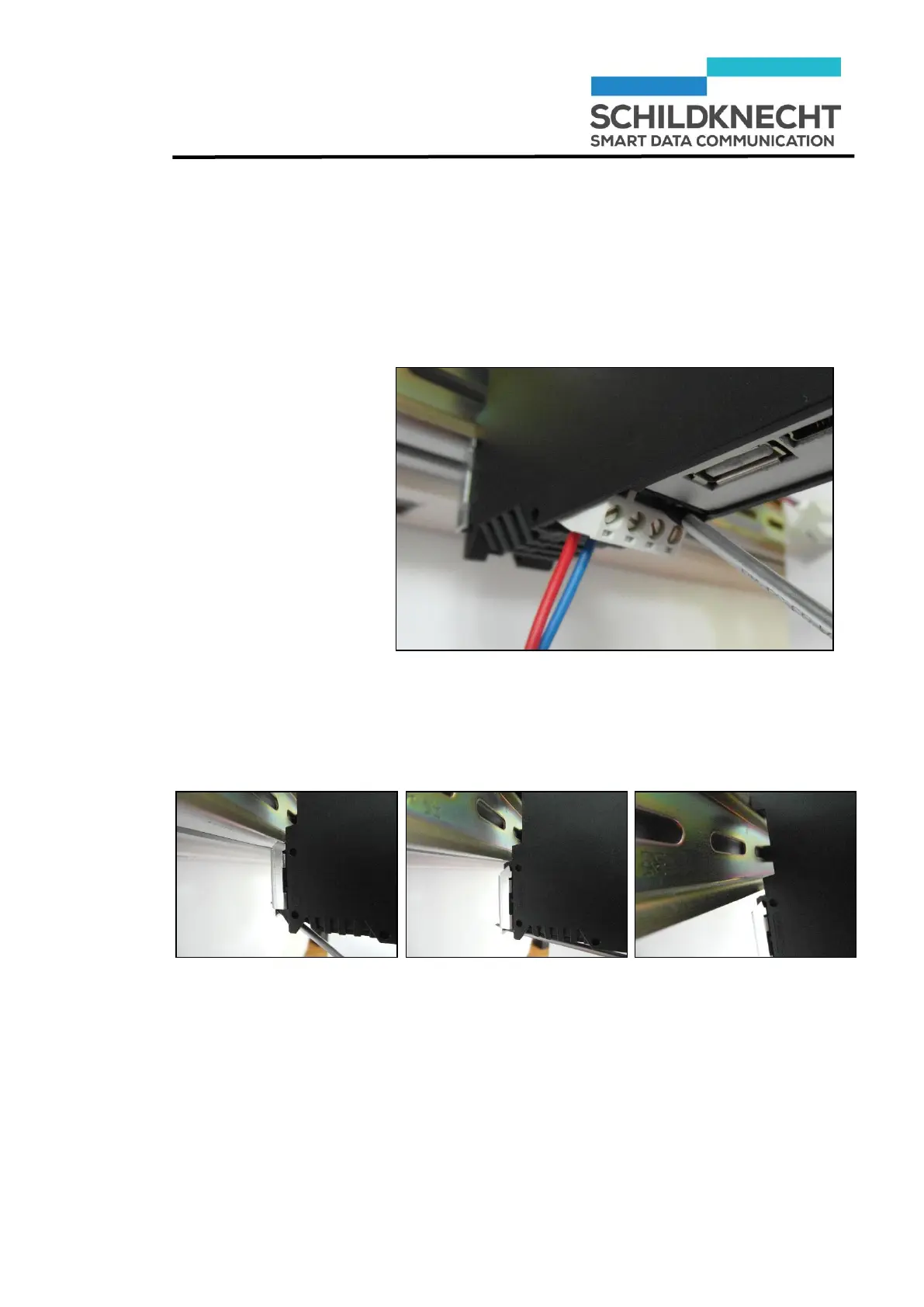

5.3.1. Remove wiring

Remove the Ethernet plug and the antenna cable.

Remove the power supply (best with a small screw
driver).
5.3.2. Remove old module

Pull the foot catch downwards and tilt the module up-
wards.
5.3.3. Install new module

See chapter 4.2 to 4.5.
