schildknecht DATAEAGLE COMPACT 4 Series - Guidelines for Optimized Installation of Antennas

Installation and commissioning DATAEAGLE 4XXX Compact 8-5
Orientation
Distance and
free radiation
Chapter 8 – Tips and Tricks
8.2. Guidelines for optimized installation of an-
tennas

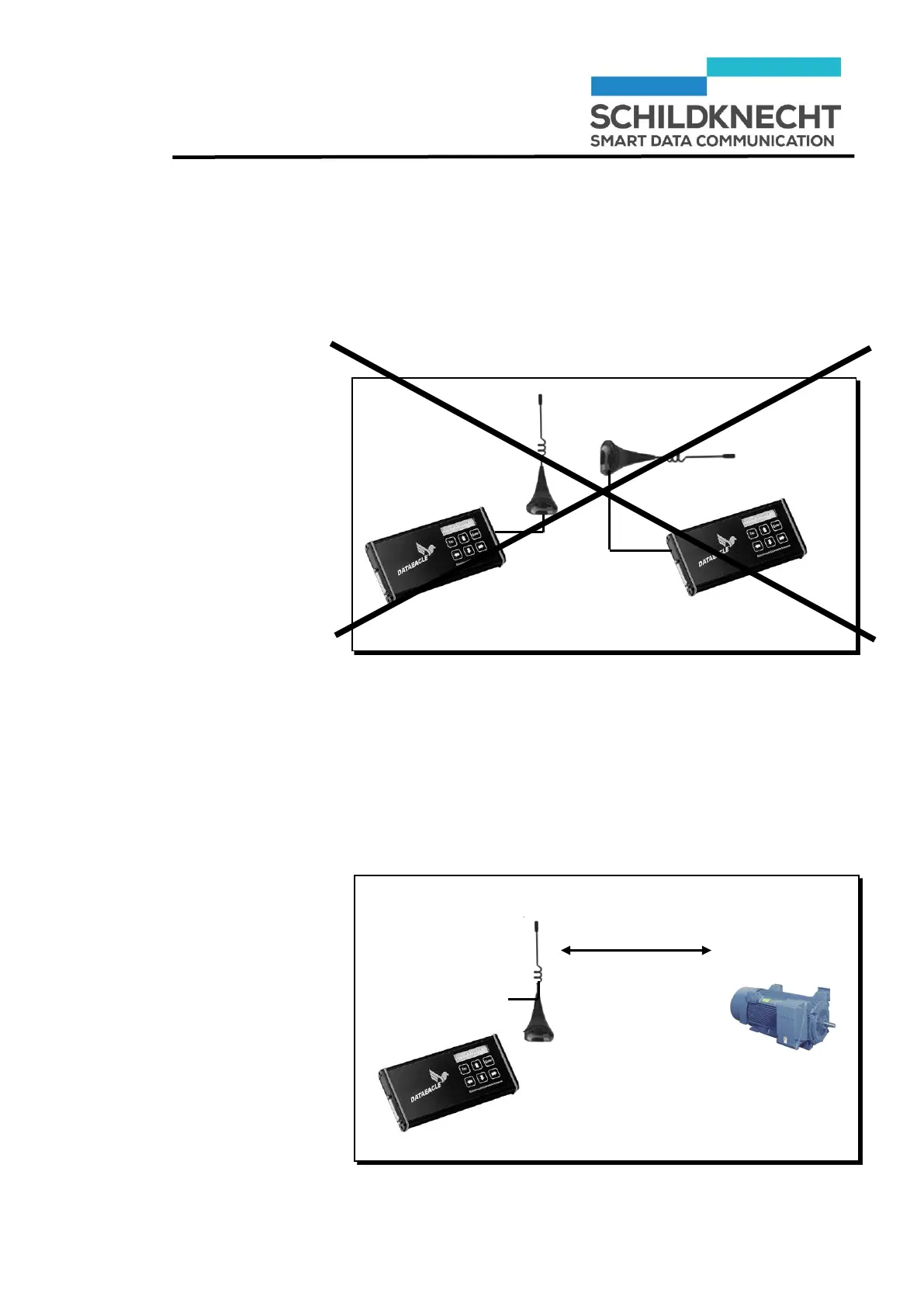

All antennas should have the same orientation, e.g. vertical.
So nicht!
Keep sufficient distance to metal parts and walls.
Keep maximum distance to motors and frequency
converters.
Provide free radiation.
((((((((((((( )))))))))))
Max
