Installation and commissioning DATAEAGLE 4XXX Compact 4-4
Chapter 4 – Installation of new devices

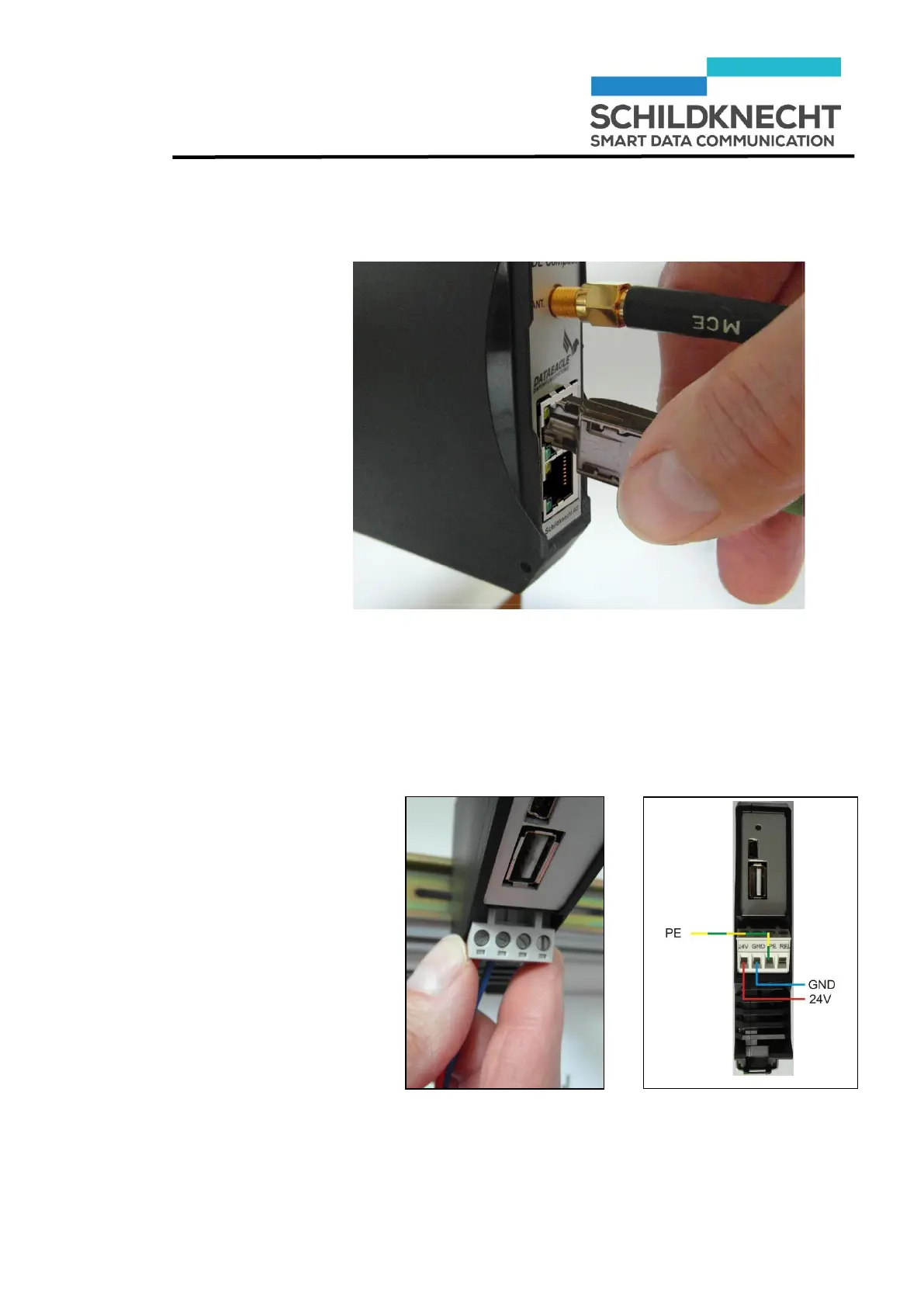

4.4. Connect Ethernet plug
Connect the Ethernet plug.
4.5. Connect power supply
Connect the power supply according to the diagram
shown below. Either the 9-33 V supply of the control
cabinet can be used.
Connect the PE cable to the radio module.
