Schlage Artus - Position internal unit to the door; Affix units to door; Install batteries; Test latch operation

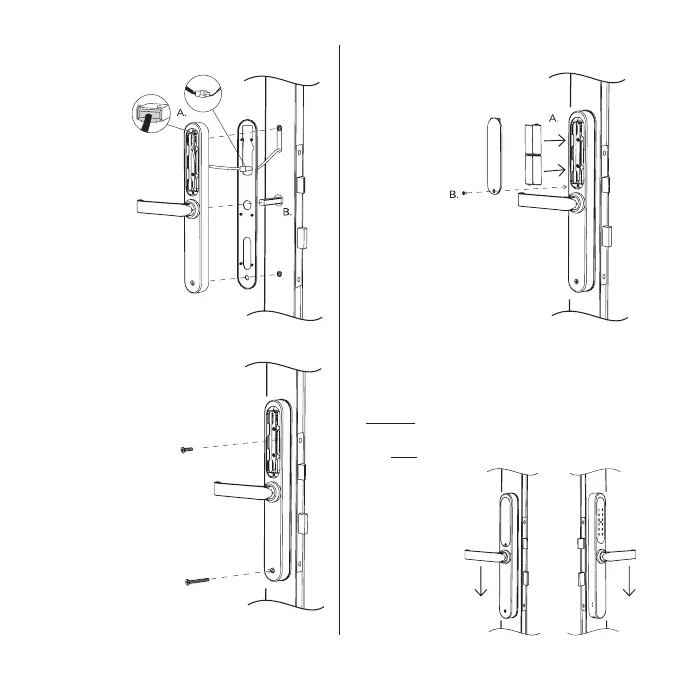

7. Position internal unit to the door 9. Install batteries
4
Remove battery
cover from
internal unit.
A. Connect
cables
ensuring
excess cable
is concealed
inside the
door.
B. Line up
spindle to the
spindle hole
in the body of
the unit.
A. Install 4x AA alkaline
batteries.
B. Secure the battery
cover with screw.
Afx the internal and
external units using the
xing screws.
With the door in the open position test
lock operation;
A. Rotate the external lever, ensure latch bolt
does not retract (refer to step 4).
B. Rotate the internal lever, ensure latch
bolt does retract.
Test operation using
code 123456#
(ignore voice
prompt during test).
8. Afx units to door 10. Test latch operation
15mm
35mm
B. A.
