Schlage Encode Series User Manual

Step 5
Phillips screwdriver Don’t use a power drill! You may damage your lock!

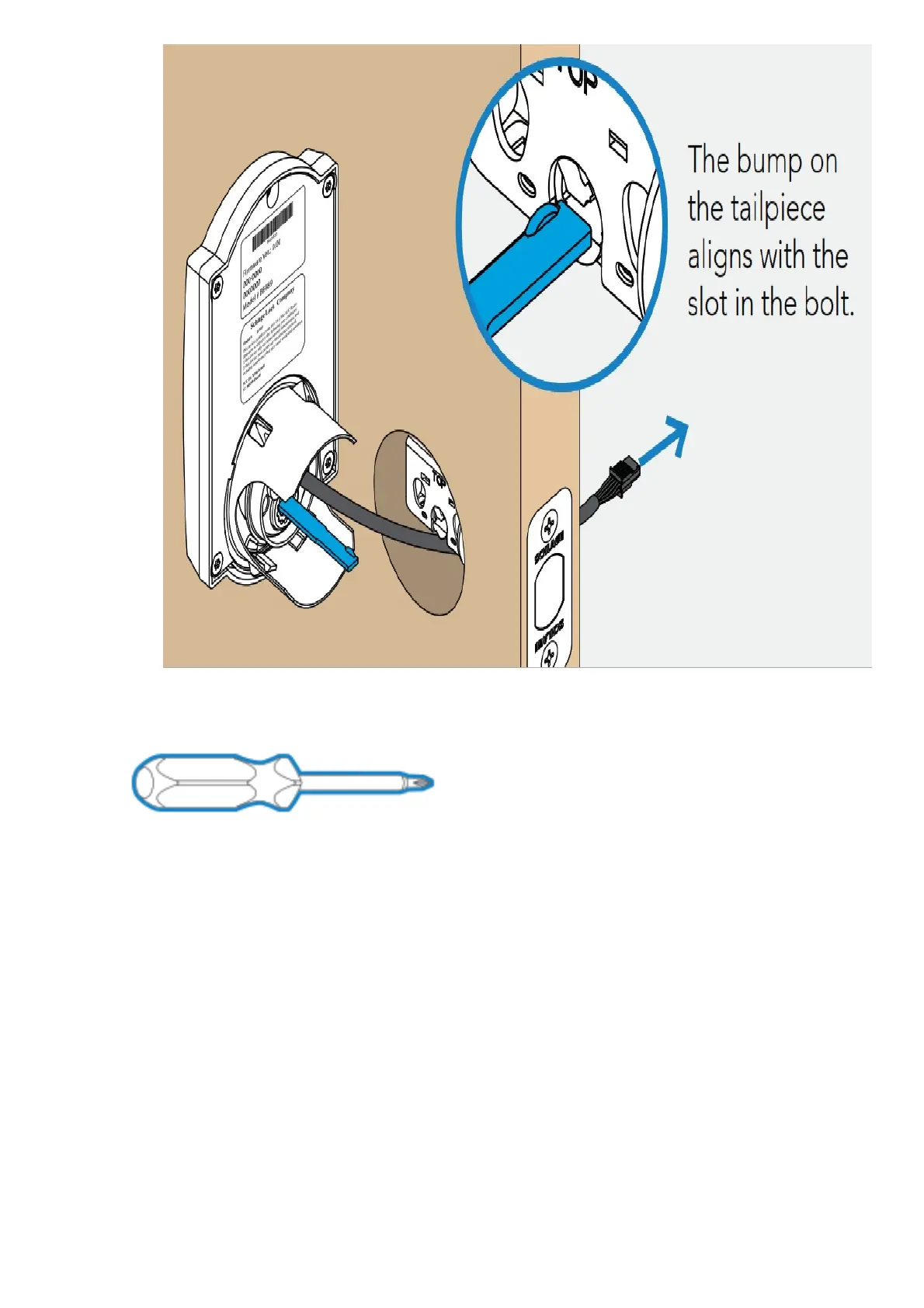

Install the backplate.
Route the cable under the bolt and through the hole on the bottom of the backplate. Secure
the backplate with screws. Make sure the outside touchscreen is straight before tightening
screws all the way.

Schlage Encode Series Specifications

General

Connectivity	Wi-Fi
Keypad	Yes
Battery Type	4 AA Batteries
Material	Metal
User Codes	Up to 100
Keyway	Schlage C Keyway
Remote Access	Yes, via Schlage Home app
Backset	Adjustable 2-3/8" or 2-3/4"
Door Thickness	1-3/8" to 1-3/4"
Warranty	Limited lifetime mechanical and finish, 3-year electronics
Auto-Lock	Yes
