Assembly
18
04.00 | GWK | Assembly and Operating Manual | en | 389127

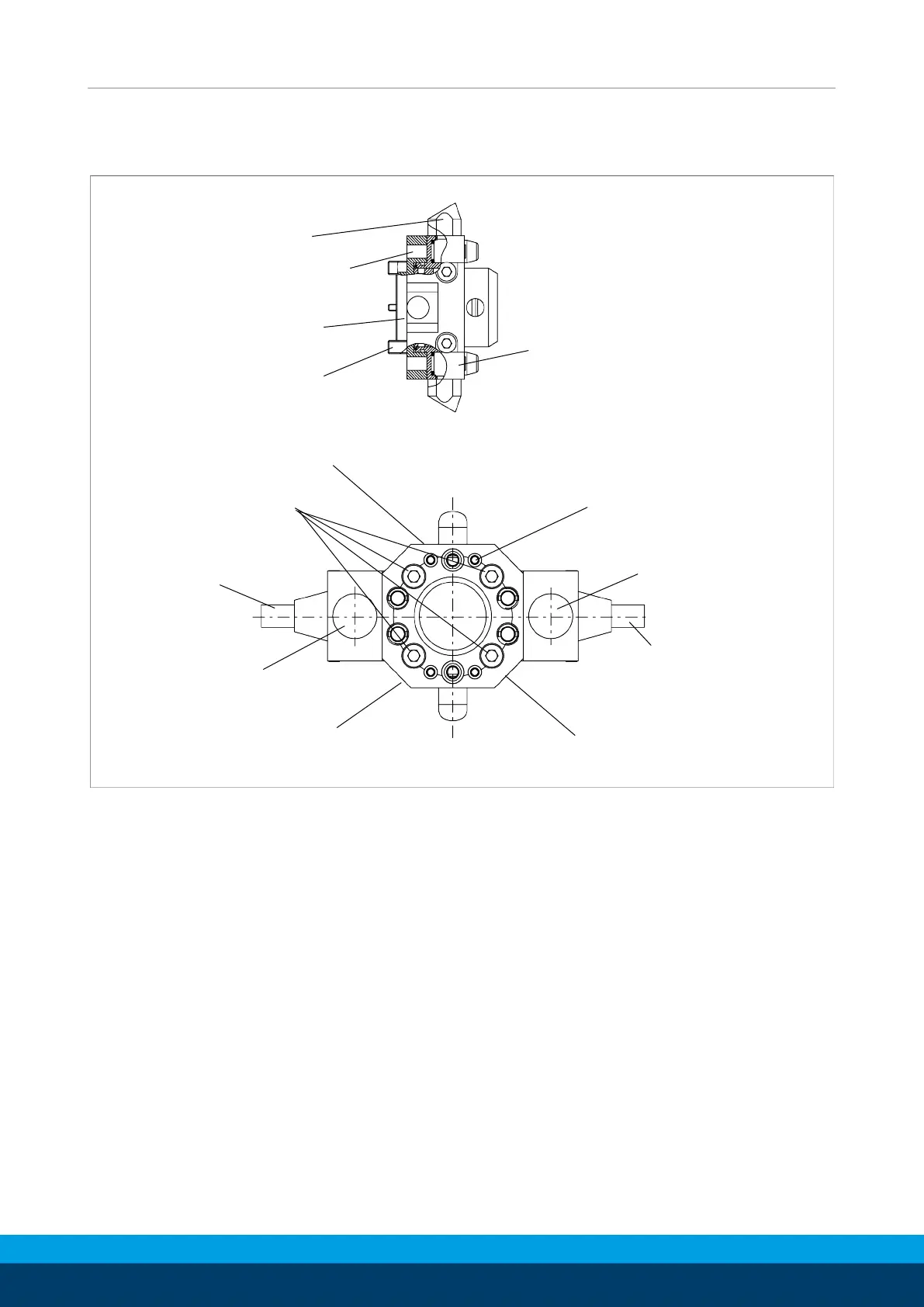

GWK 64
Robot side
GWA side
Energy feed-throughs 2 x LW Ø5
Connections 2 x R1/8"
Bore holes for cylindrical pins 2 x Ø6H7
Centering shoulder Ø31.5f7
Fastening screws 4 x M6 DIN 7984
Cable length 5 m
Electrical plug connector
Lock M5 connection
Fastening screws 4 x M6 DIN 7984
Connections 4 x M5
Air feed-throughs 4 x LW Ø3
Cable length 5 m
Electrical plug connector
Unlock M5 connection
View of GWA side
GWK 64
