Assembly
04.00 | GWK | Assembly and Operating Manual | en | 389127
21
4.2 Electrical plug connector
NOTE
The cables must not be constantly moved up to the cable exit (risk
of fracture).
The last cable clip is to be placed 100 – 300mm before the cable
exit.
The minimum bending radius of the cable is 15 x cable Ø.
The bending radius can be less than the minimum where the cable
is laid in such a way that it is rigid.
NOTE
The cable diameter is 8.5mm. The cable housing and plug
connector are designed in accordance with VDE directives.

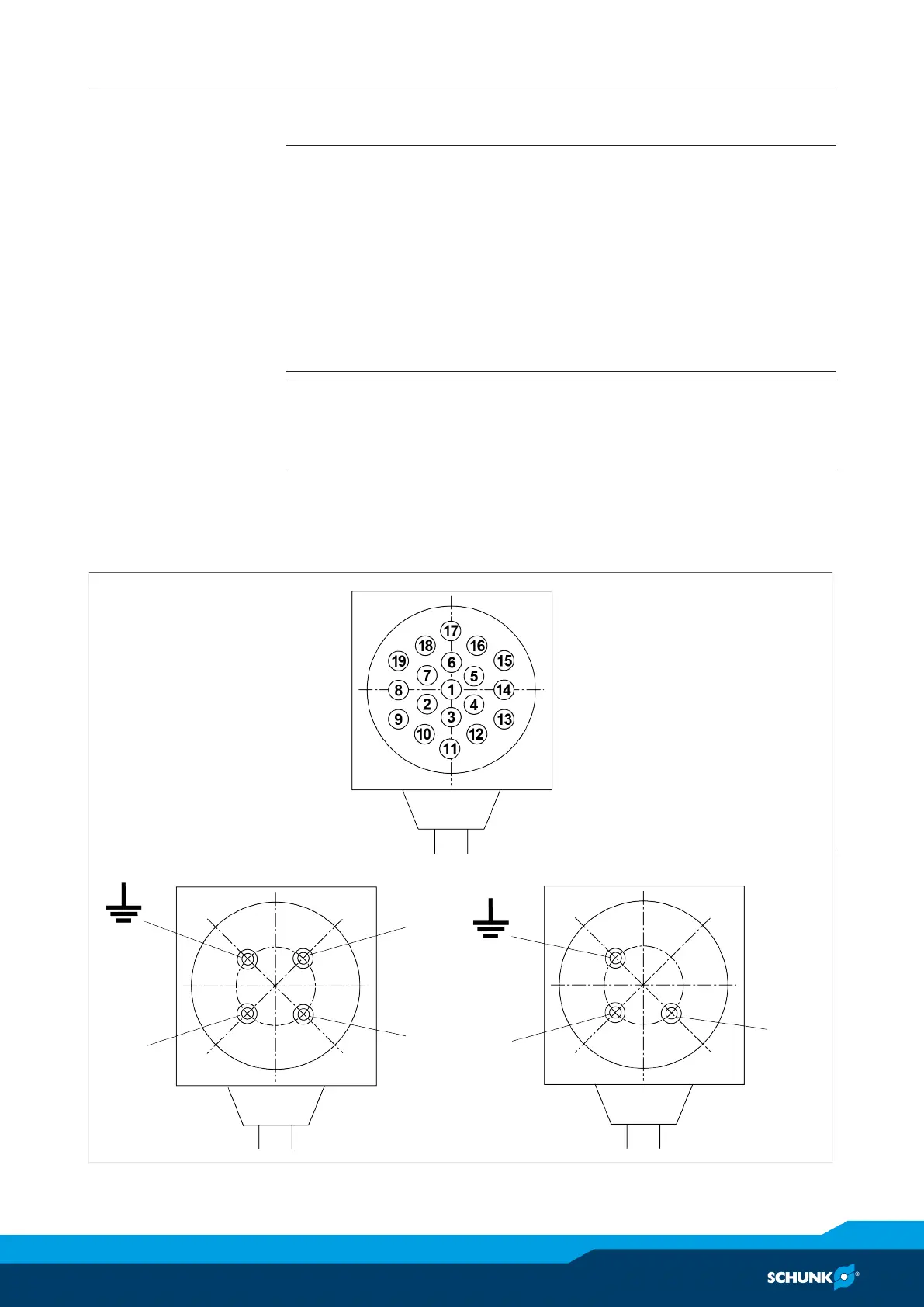

Connector
assignments
Connector assignment – 18-pin (max. 24V/1A)
Connector assignment - 4-pin (max. 380V/25A)
Connector assignment - 3-pin (max. 250V/15A)
Black
Blue
Brown
Blue
Brown
