Assembly
20
04.00 | GWK | Assembly and Operating Manual | en | 389127

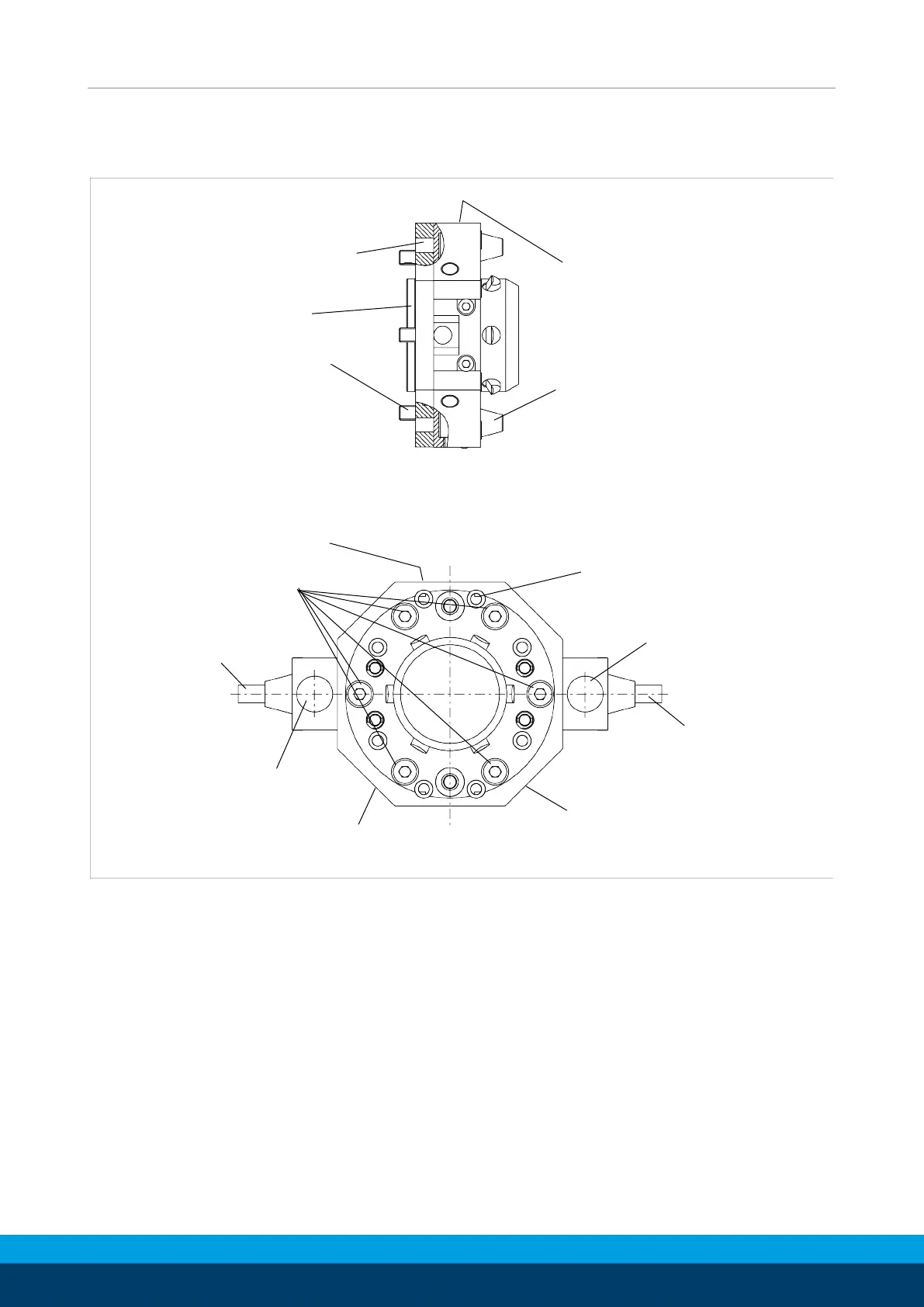

GWK 125
Robot side
GWA side
View of GWA side
Energy feed-throughs 2 x LW Ø7
Connections 2 x R1/4"
Bore holes for cylindrical pins 2 x Ø8H7 / 10 deep
Centering shoulder Ø63f7
Fastening screws 6 x M8 DIN EN ISO 4762
Air feed-throughs 8 x LW Ø6
Electrical plug connector
Cable length 5 m
Unlock M5 connection
Lock M5 connection
Connections 8 x R1/8"
Fastening screws 6 x M6 DIN EN ISO 4762
Cable length 5 m
Electrical plug connector
GWK 125
