Assembly
04.00 | GWK | Assembly and Operating Manual | en | 389127
19

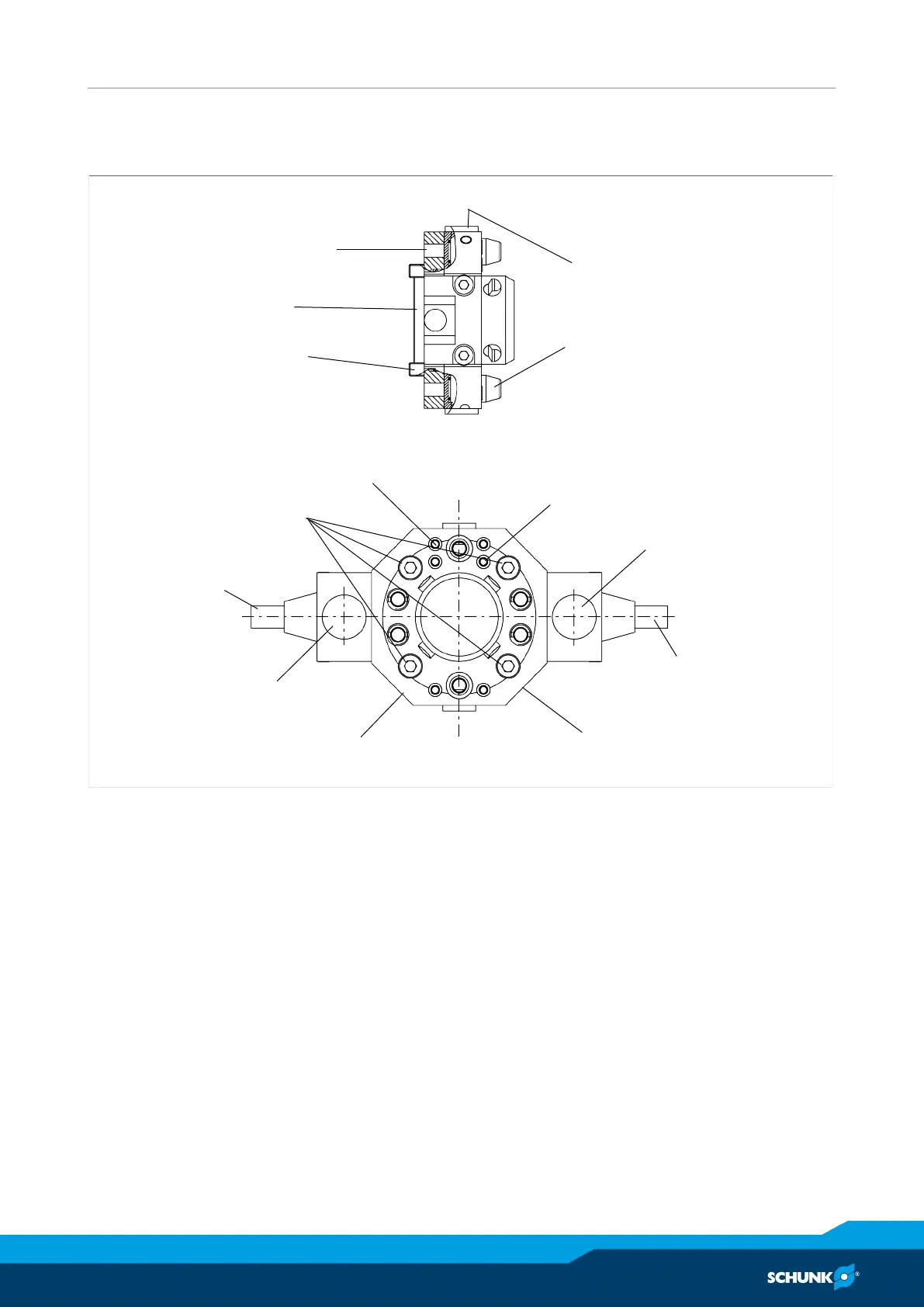

GWK 80
Robot side GWA side
Air feed-throughs 6 x LW Ø3
Electrical plug connector
Cable length 5 m
Unlock M5 connection
Lock M5 connection
Cable length 5 m
Electrical plug connector
Fastening screws 4 x M6 DIN EN ISO 4762
Connections 4 x M5
Bore holes for cylindrical pins 2 x Ø6H7
Centering shoulder Ø40f7
Fastening screws 4 x M6 DIN EN ISO 4762
Connections 2 x R1/8"
Energy feed-throughs 2 x LW Ø6
View of GWA side
GWK 80
