Assembly
30
09.00 | MPG | Assembly and Operating Manual | en | 389213

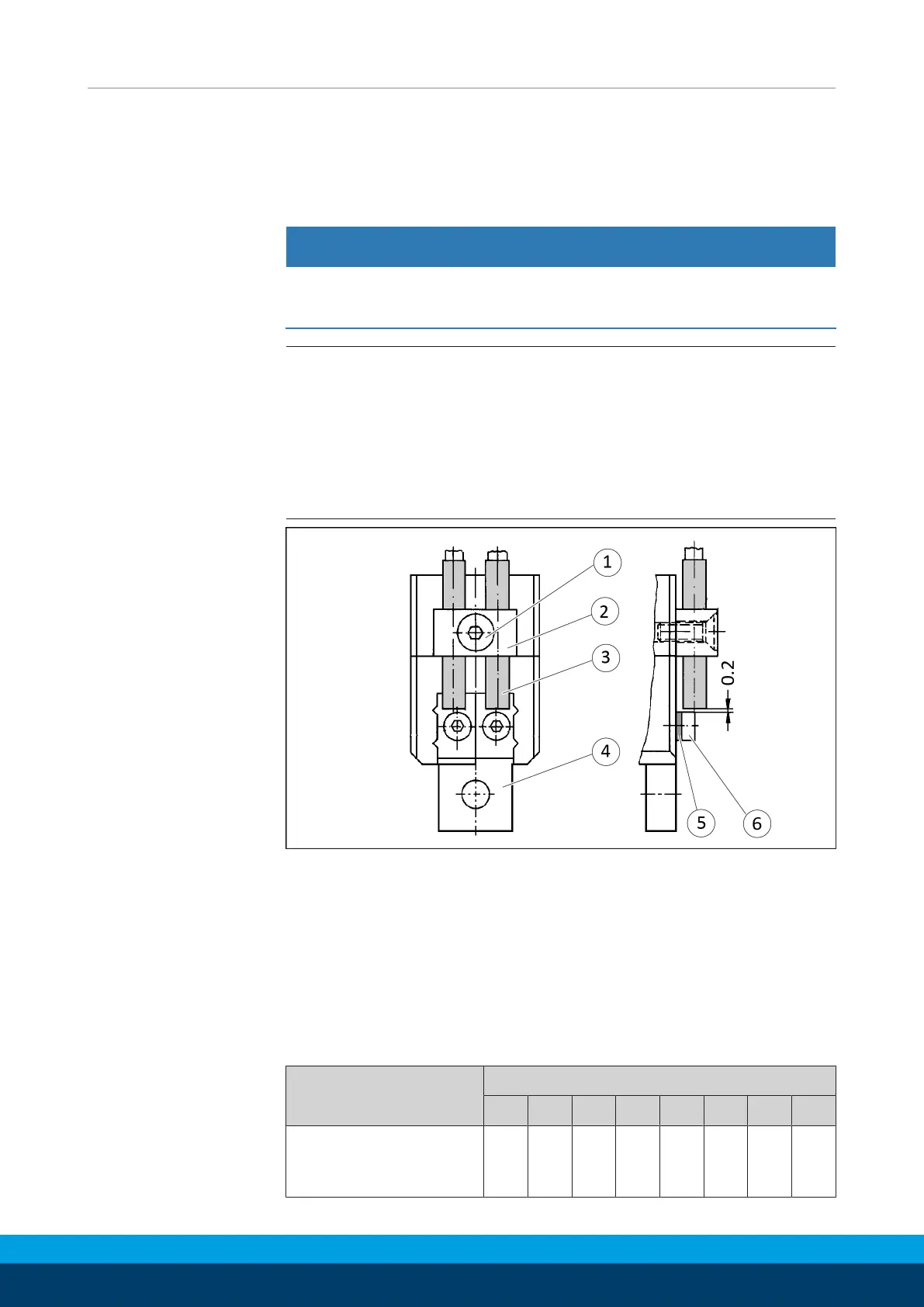

5.3.3 Mounting the inductive proximity switch IN 3, IN 40
Mounting kit
To use the inductive sensor, the gripper has to be retrofitted with
a special mounting kit. This mounting kit is available from SCHUNK
for the models below.
CAUTION
Risk of damage to the sensor during assembly!
• Observe the maximal tightening torque.
NOTE
The sensorsare dampened by the screw heads.
For sizes MPG 25– 80, a spacer sleeve is also used to monitor
"Part gripped" position.
For sizes MPG 16–20, it is not possible to monitor "Part gripped"
position.
Ø For "opened" or "closed" monitoring: secure screw(6) in the base
jaw(4).
For tightening torque, see following table.
Mount spacer sleeve(5) on the housing on the side of the main air
connections to keep it in the immediate vicinity of the product.
Ø For "Part gripped" monitoring: secure spacer sleeve(5) and
screw(6) to the base jaw(4).
For tightening torque, see following table.
Ø Secure holder(2). Tighten screw(1) only slightly.
Designation MPG
16 20 25 32 40 50 64 80
Maximum tightening
torque for the screw
item 6 [Ncm]
16 34 34 68 68 68 120 310
