SCHUNK MPG Series - Mounting the Object-Distance Sensor OAS

Assembly
09.00 | MPG | Assembly and Operating Manual | en | 389213
33

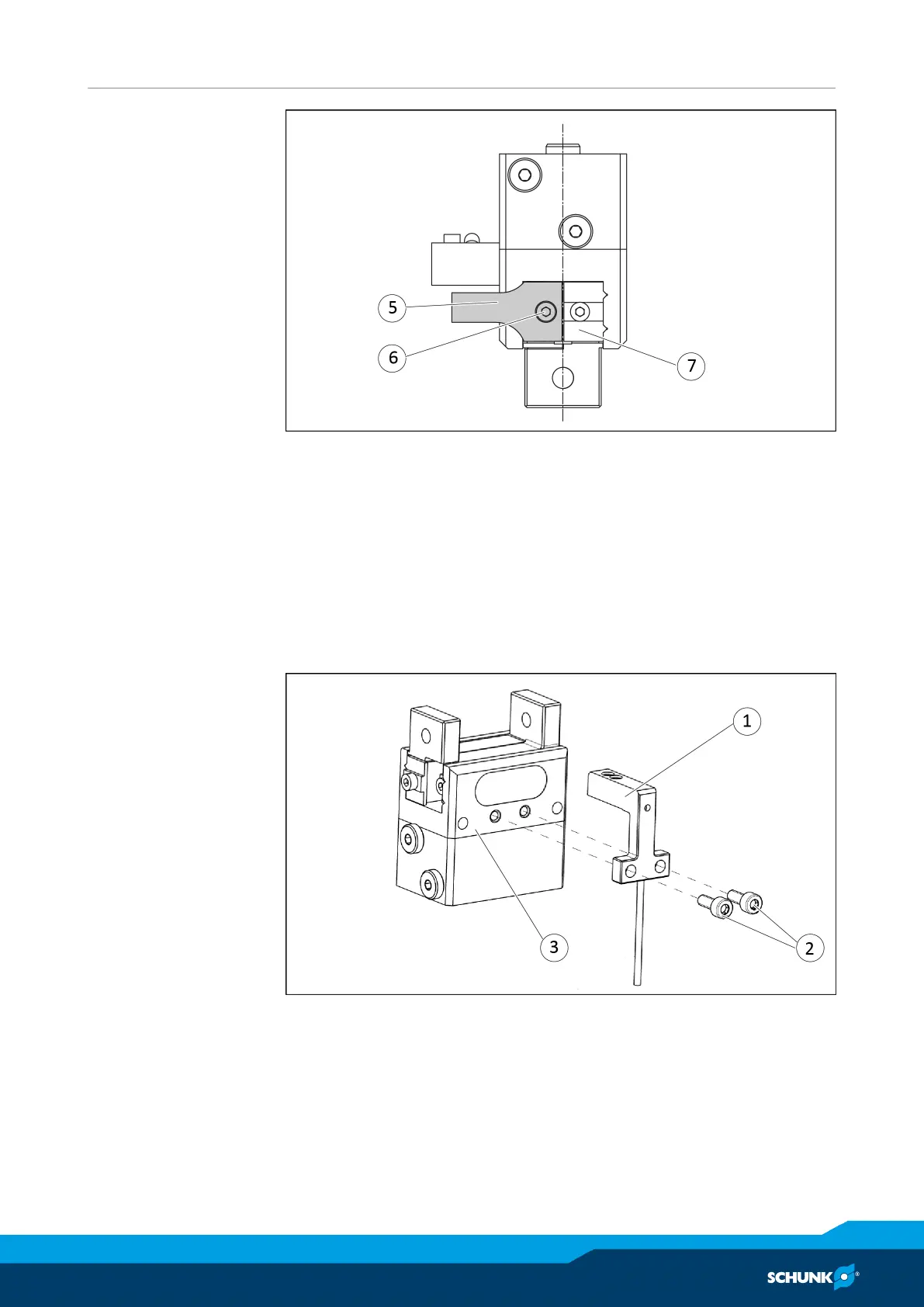

Ø Up to construction year 12/2015: Secure control cam (5) with
screw (6) on the cover(7). Ensure that the magnets are facing
towards the sensor surface.
Ø From construction year 01/2016: Secure control cam (5) with
screw (6) on the base jaw. Ensure that the magnets are facing
towards the sensor surface.
Ø Connect the torque sensor system controller and adjust the
sensor, see sensor assembly and operating manual.
5.3.5 Mounting the object-distance sensor OAS
Ø Fix sensor(1) with screws(2) at the housing(3).
Notice: The screws(2) are not included in the scope of delivery.
Ø Connect control unit output and adjust sensor, see sensor
mounting and operating manual.
