Assembly
32
09.00 | MPG | Assembly and Operating Manual | en | 389213

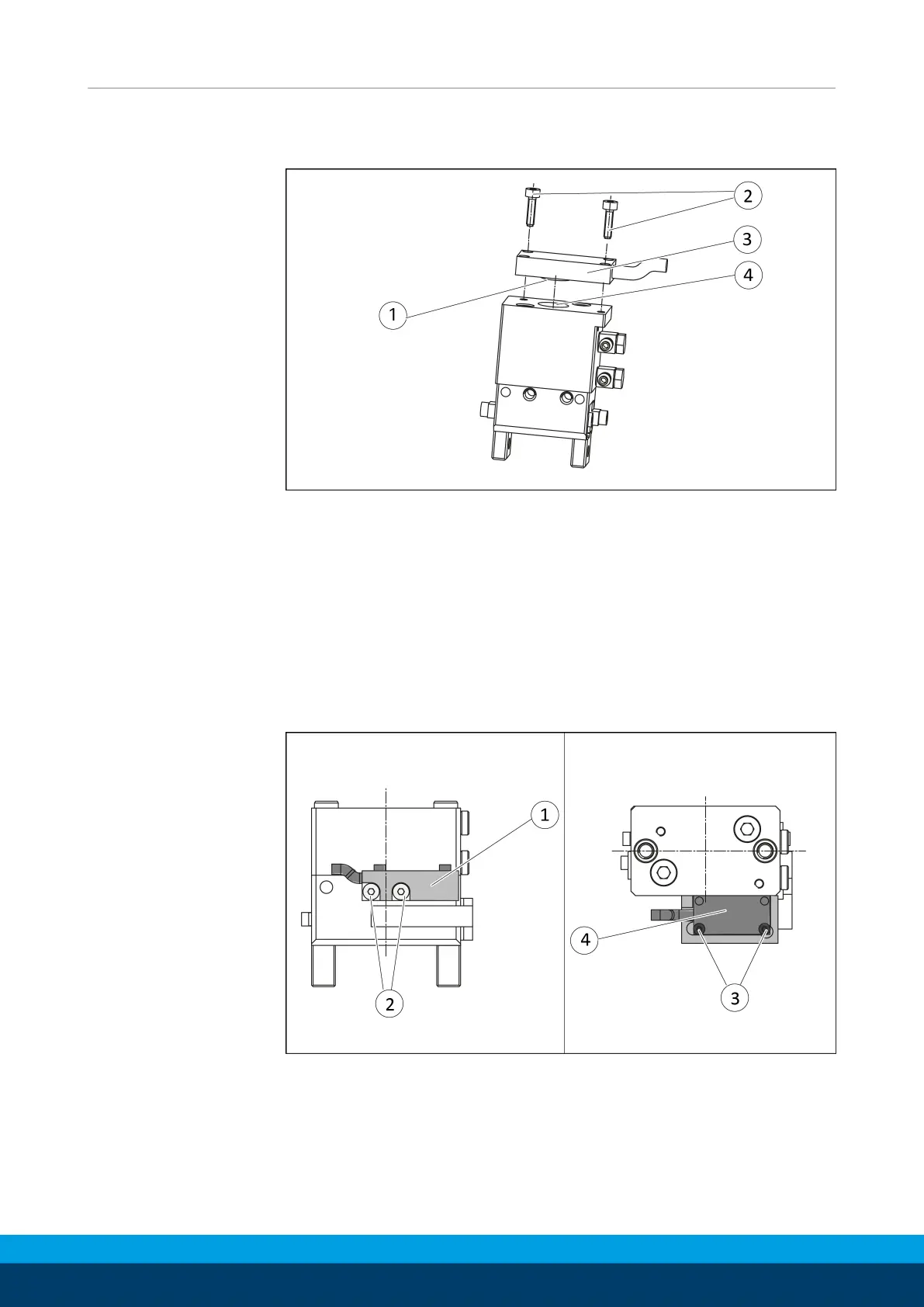

Size MPG20/25/32
For these sizes, the sensor is mounted directly onto the housing.
Ø Position sensor(3) with the circular elevation(1) in the recess in
the housing(4).
Ø Secure sensor with screws(2).
Tightening torque: 10Ncm
Ø Connect the torque sensor system controller and adjust the
sensor, see sensor assembly and operating manual.
Size MPG 40/50/64/80
For these sizes, a bracket must be mounted. This bracket is
available from SCHUNK.
Ø Secure bracket (1) with screws (2).
Ø Position sensor(4) with the circular elevation in the bore in the
bracket(1).
Ø Secure sensor(4) with screws (3).
Tightening torque: 10Ncm
