5.2.2 Pneumatic connection

NOTE

The central compressed air supply line must be equipped with a

maintenance unit that is positioned as near as possible to the

consumer.

NOTE

Only use carbide bits to remove the bottom grub screws.

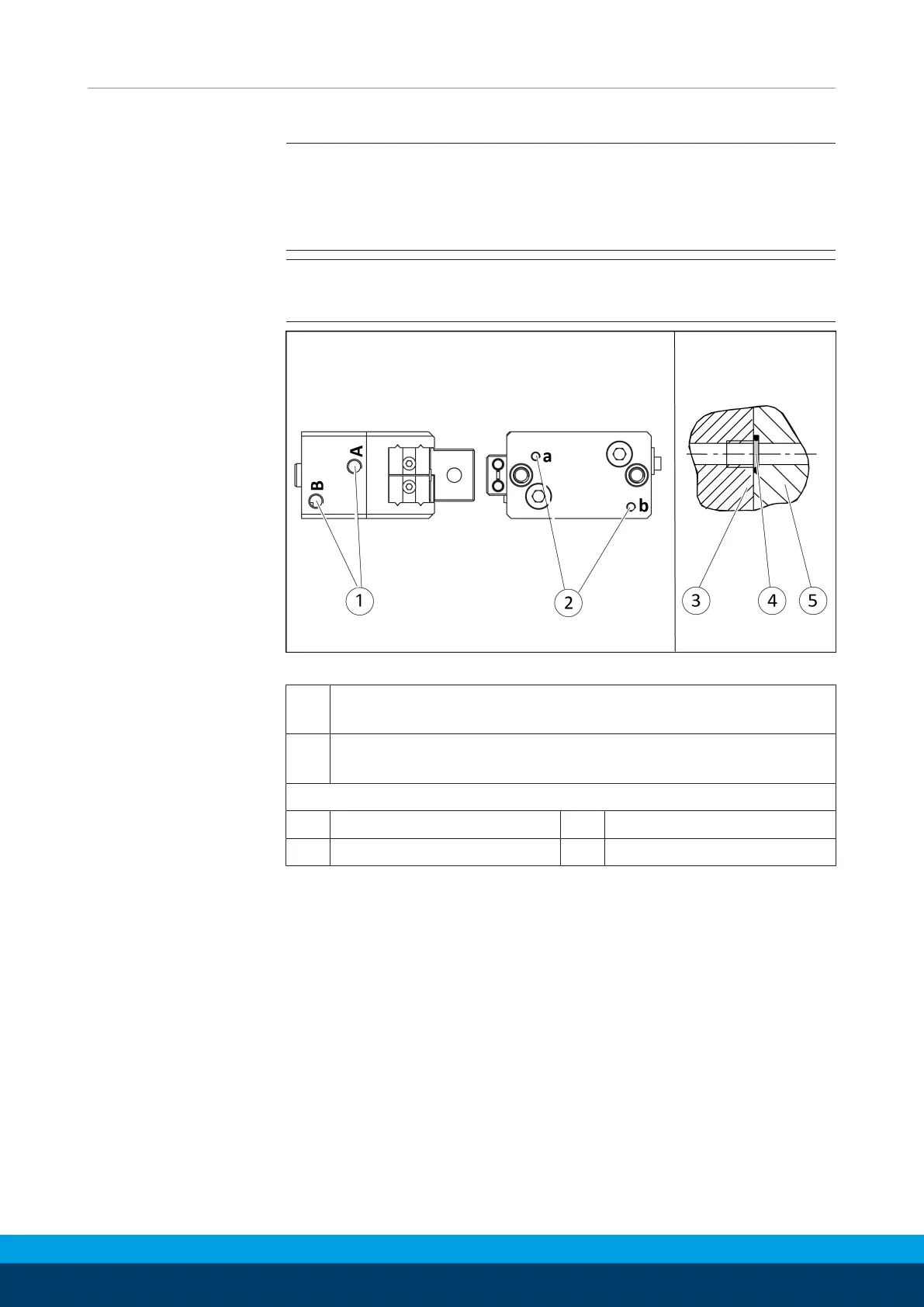

Compressed air connections

1 Main connections (Hose connection)

(A = open, B = close)

2 Hose-free direct connection at the base

(a = open, b = close)

Hose-free direct connection

3 Product 5 Attachment

4 O-ring
