SCHUNK PWG-S 40 Translation Of The Original Manual

Assembly
14 02.02|PWG-S 40 - 80|en
Air connection
WARNING
Risk of injury when the machine/system moves unexpectedly!
Switch off power supply.
NOTICE
Observe the requirements for the air supply.
( 6
, Page 12) "Technical Data"
• Screw in the seal set-screws only flush.

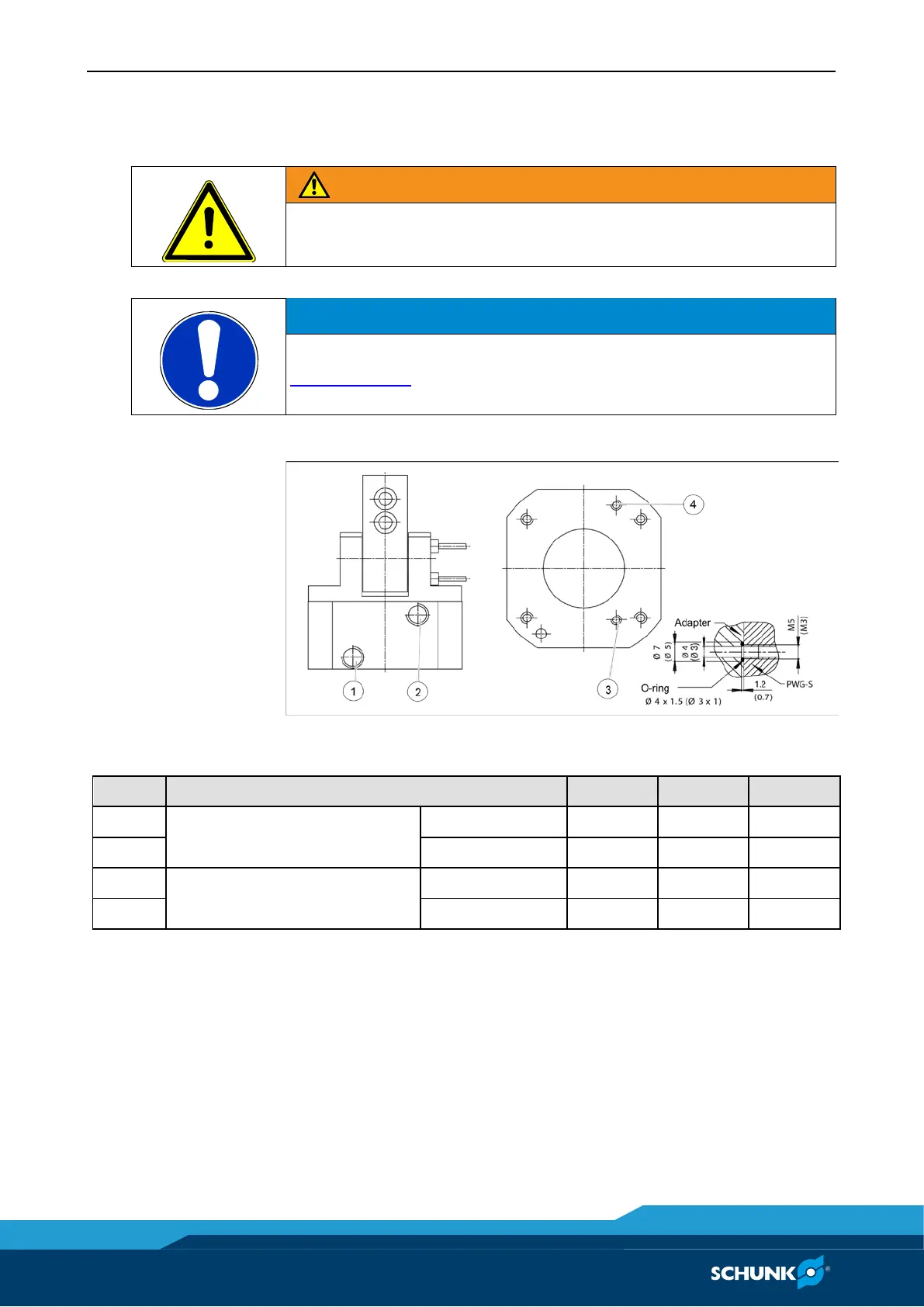

Fig. 2 Air connections
Thread diameter of the air connections
Item Connection 40 60 80
1 Hose connection Gripper OPEN M5 M5 R1/8"
2 Gripper CLOSED M5 M5 R1/8"
3 Hose-free direct connection
at the base
Gripper OPEN M5 M5 M5
4 Gripper CLOSED M5 M5 M5
• Only open the air connections required.
• Seal air connections not required using
the locking screws from the enclosed pack.
• For hose-free direct connections use the two O-rings from the
enclosed pack.
7.2
