Assembly
02.02|PWG-S 40 - 80|en
15
Sensors
The gripper is prepared for the application of the IN 40 / IN 60 sen-
sors.
If you require further information on sensor operation, contact
your SCHUNK contact person or download information from
our homepage.
Technical data for the sensors can be found in the data sheets
(included in the scope of delivery).
IN 40 inductive proximity switch
4
25

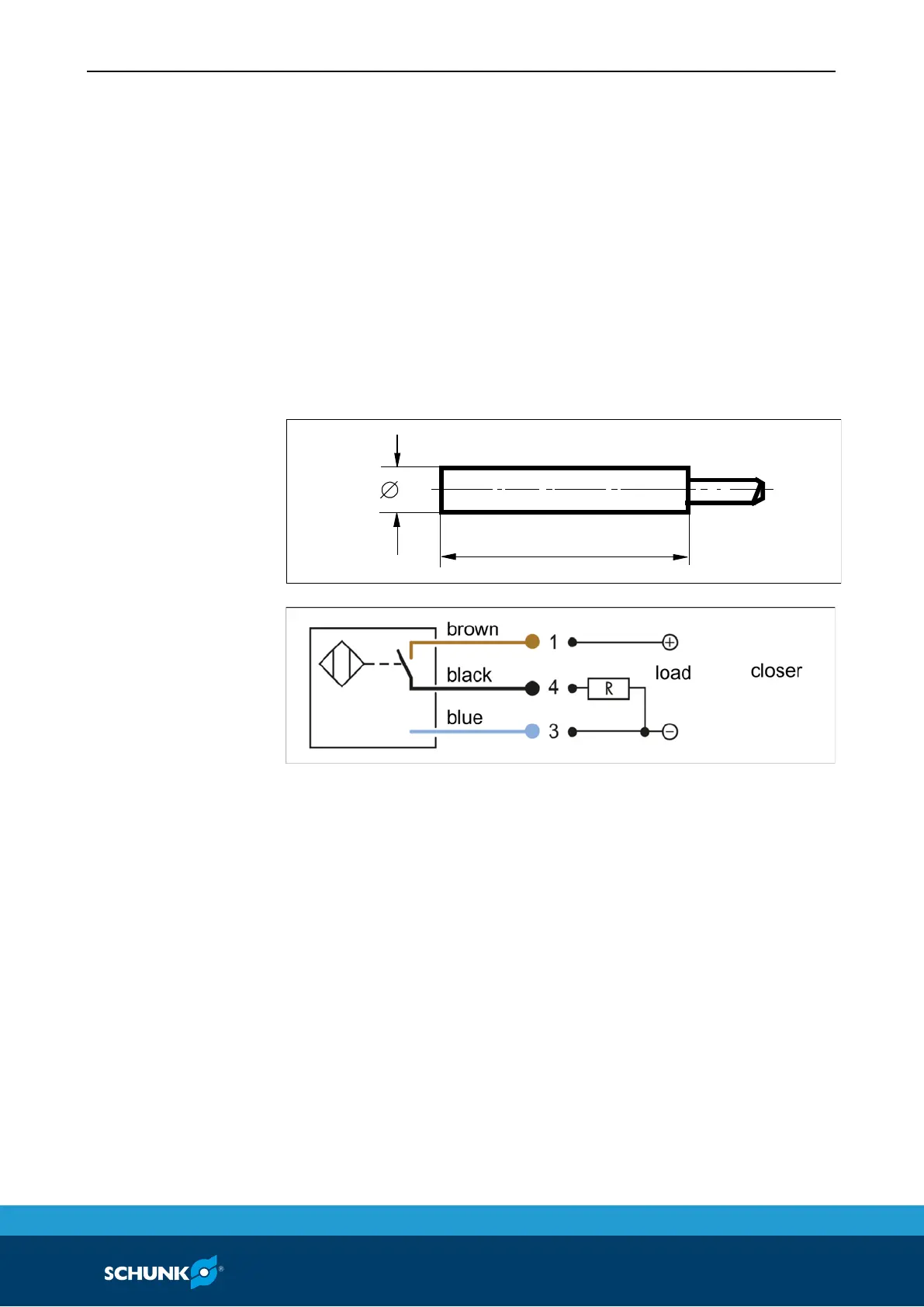

Fig. 3
Fig. 4
Types that can be ordered ( catalog):
The inductive proximity switches used are equipped with reverse
polarity protection and are short-circuit-proof.
Make sure that you handle the proximity switches properly:
Do not pull on the cable.
Do not allow the sensor to dangle from the cable.
Do not overtighten the mounting screw or mounting clip.
Please adhere to a permitted bend radius of the cable ( ca-
taolg).
Avoid contact of the proximity switches with hard objects and
with chemicals, in particular nitric acid, chromic acid and sul-
phuric acid.
7.3
7.3.1
