Attachment
All TB 400 – 850, TB-LH 400 – 850, TB/TB-LH 1000 (2010 or later*)
* TB/TB-LH 1000 for year of construction 2010 or later

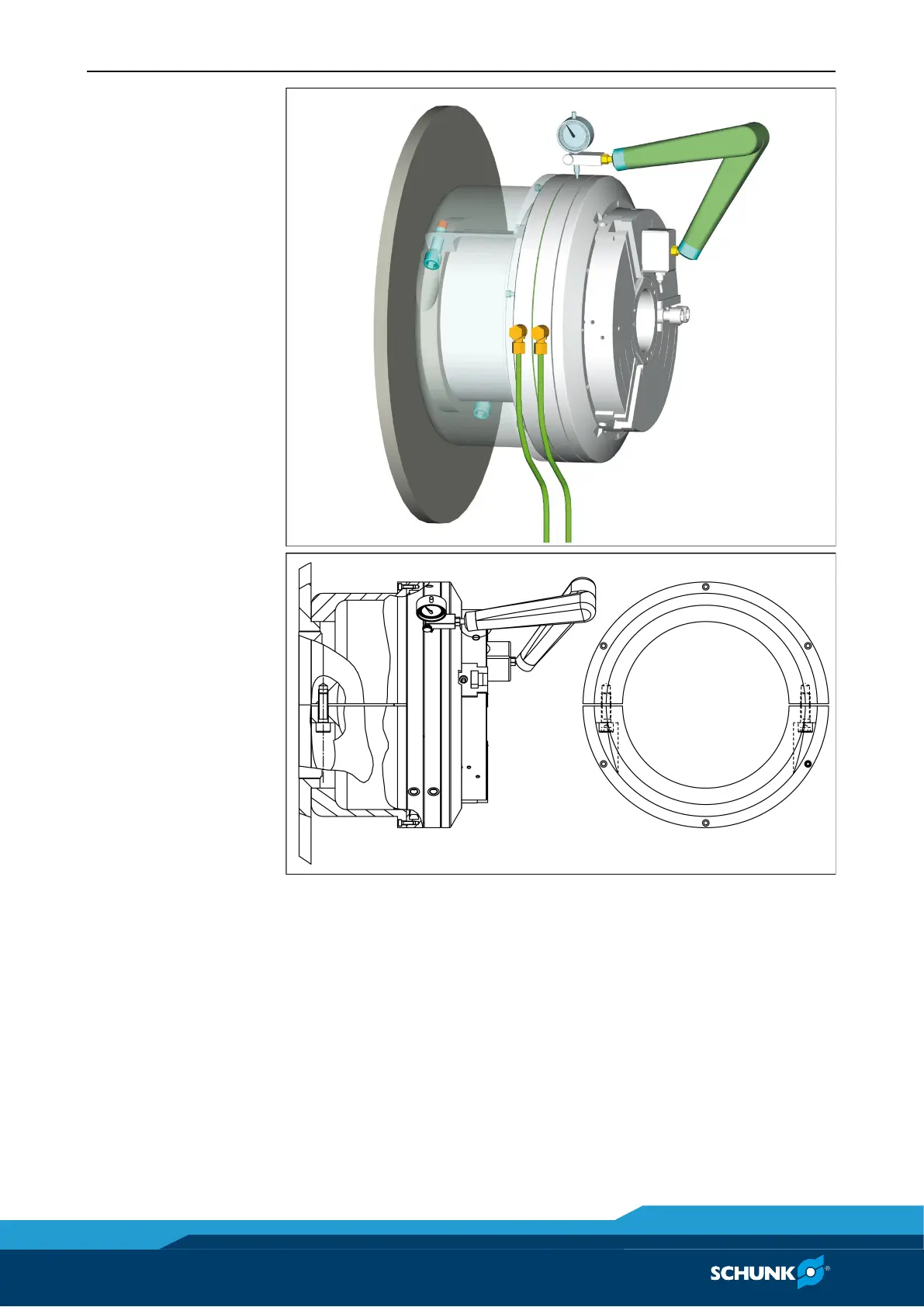

For power chuck types TB and TB-LH in size 400 – 850, a chuck
flange is mounted on the spindle nose. 12 M12, M16 or M24
hexagon socket screws (for TB-400 9 x 40°) are used to screw the
chuck onto the chuck flange by the front face side. The cylindrical
recess on the flange must protrude 1 mm from the floor of the
