All TB/TB-LH 1000 (up to 2009*) and EP/EP-LH
* TB/TB-LH 1000 for year of construction up to 2009

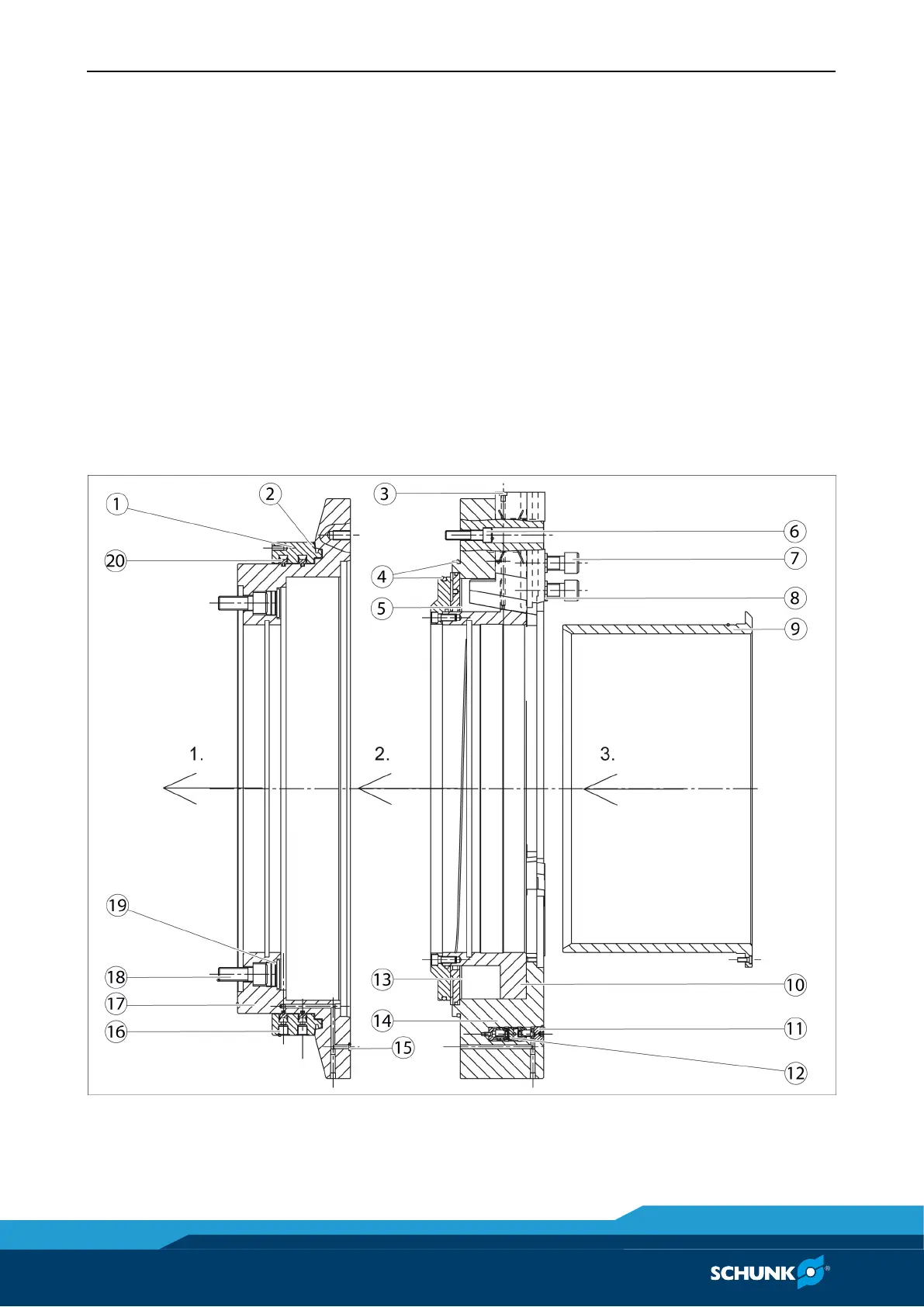

For power chuck types EP, EP-LH, TB and TB-LH in sizes of 1000
and larger, mounting is a several-step process. First, the chuck
body is unscrewed and separated from the cylinder. The cylinder is
then screwed onto the spindle nose/chuck flange, and the bore
holes are sealed using DIN 908 locking screws and copper sealing
rings. In order to simplify the mounting procedure, the bushing is
removed from the chuck body. The chuck body cannot be screwed
onto the cylinder until this is done. When doing this, pay attention
to the three O-rings used to seal the channel bore holes, taking
care to ensure that they are mounted properly and not damaged.
TB and TB-LH for size 1000 and larger - all EP and EP-LH
