SCHUNK ROTA TB 630-310 - Page 50

Commissioning and maintenance
50 02.00|0889073_ROTA TB-TBS-EP |en
1

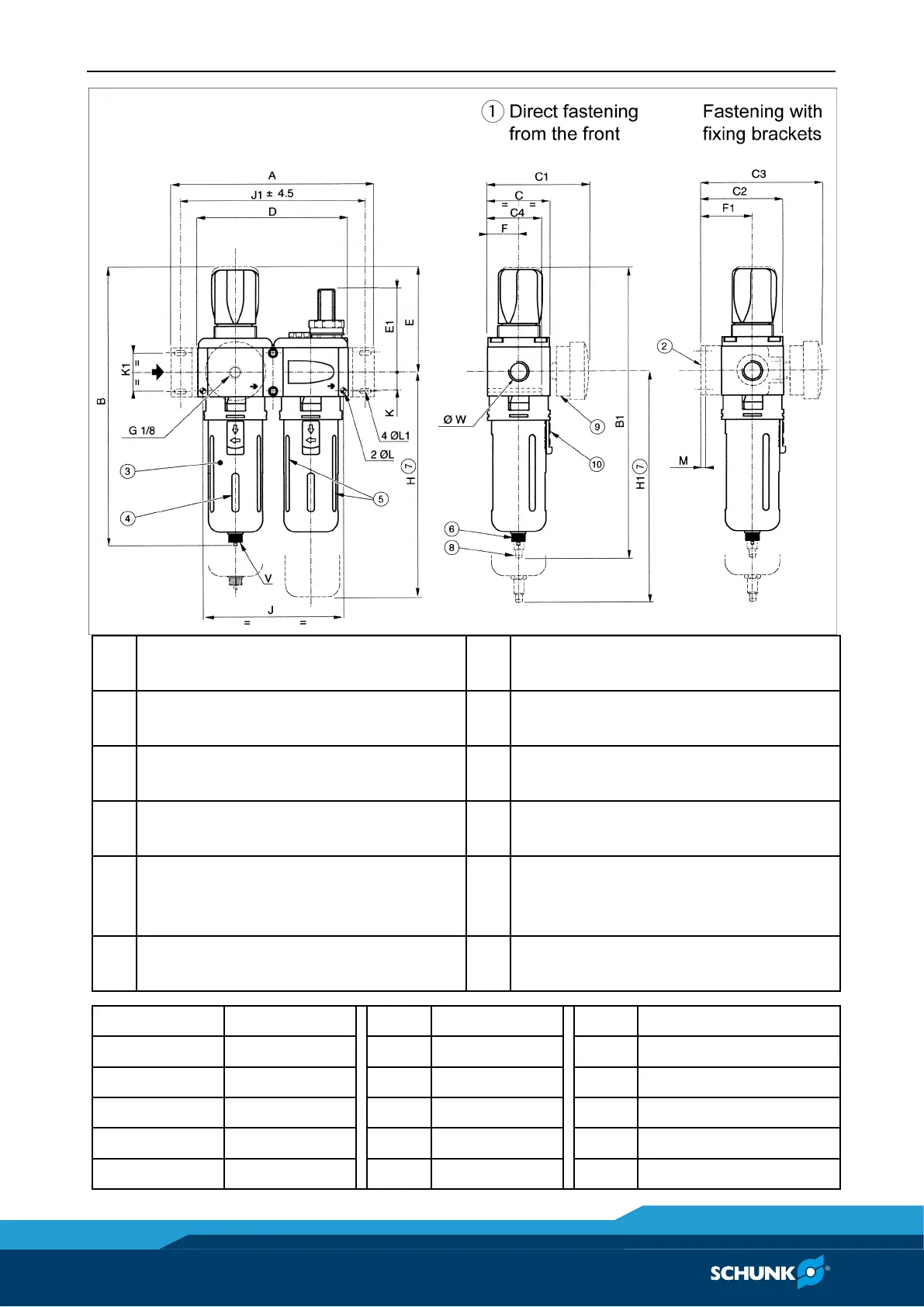

Mounted directly from front: 2 bore
holes Ø L, depth C4
7
Required distance for removing the
tank
2
Lateral mounting with two retaining
brackets (accessories)
8
Automatic condensate drain can be
connected using a hose with I.D. 6
3
Protective metal cage with transparent
polycarbonate tank
9
Pressure gauge, Ø 40
4
Fill level indicator for condensate
(small inspection window)
10
Protective cage lock
5
Fill level indicator for oil – min./max.
(large inspection window)
11
Distributor module as accessory: with
two connections (Ø T) at front and rear
and one ready-fitted seal plug
6
Semi-automatic condensate drain, G
1/8 connection
Ø W
G 1/4”
D
84
K
10
Tank
7 cl
D1
42
K1
28
A
125
E
89
Ø L
4.1
W
213
E1
65
Ø L1
4.5
B1
-
F
21
M
3
C
42
F1
40
Ø T
G 1/8”
