SCHUNK UFG 26 - Installation and Adjustment; Adjustment Mechanism

4.2 INSTALLATION AND ADJUSTMENT
OF PROXIMITY SWITCHES
NOTE:
Proximity switches are accessories and have to be
ordered separately.
The positions on the switch are freely chooseable.
If SCHUNK proximity switches with plug-connectors

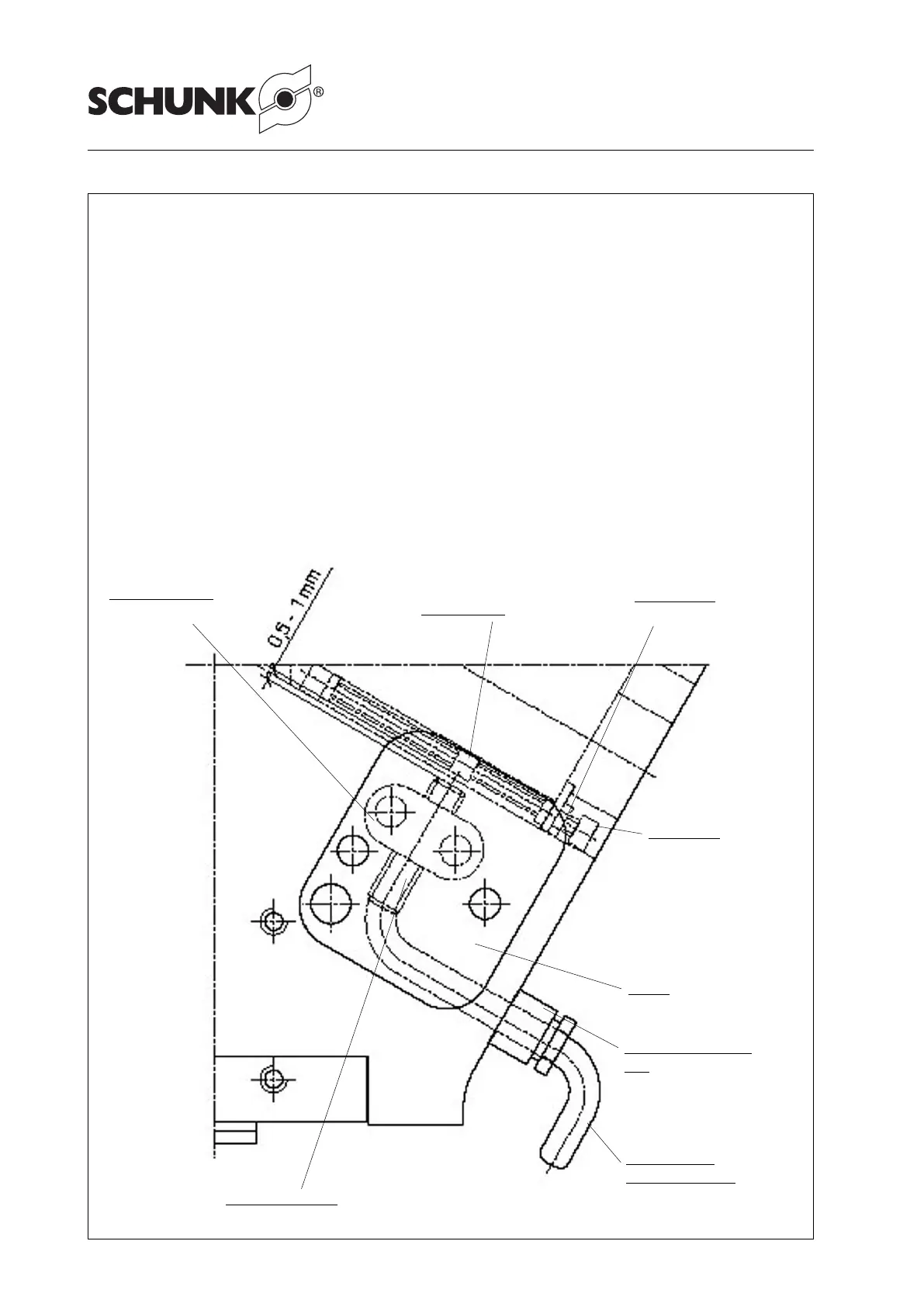

4. Proximity Switches
Cable of the
proximity switch
PG-screw connec-
tion
Cover
Proximity switch
Jamming piece
(max. 100 Ncm)
Cyl. screw for adjust-
ment of the interroga-
tion position
are used, the PG-screw connections have to be
disassembled and the components have to be
pushed over the proximity switch onto the cable.
Adjustment and interrogation of the position:
a) Turn the cyl. screw clockwise:
– The control cam is moving into the
direction of the screw head.
b) Turn the cyl. screw anti-clockwise:
– The control cam is moving away from the
screw head.
Counter nut
(secured cyl. screw)
Control cam
Page -8-
