braun
load
Last
Closer
Öffner
schwarz
blau
blue
brown
black
Bending radius of the cable: 10 x cable diameter

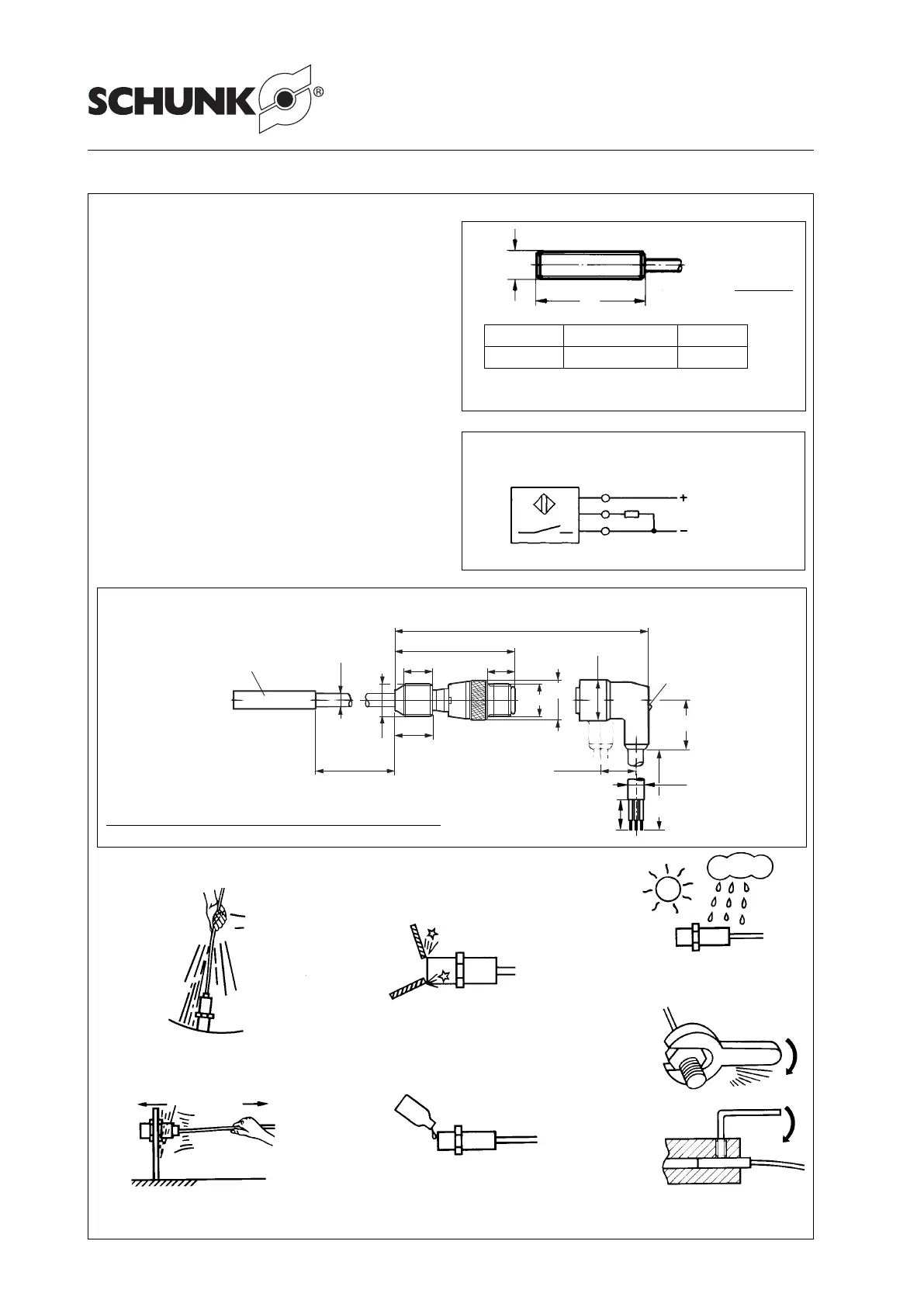

4.1 NOTES ON PROXIMITY
SWITCHES
Technical Data:
– Supply voltage: 10 - 30 V DC
– Operation voltage: max. 15 %
– Max. load current: 200 mA
– Hysterisis: 15% of nominal
sensing distance
– Range of temperature: - 25°C to + 70°C
– Max. operating frequency: 1000Hz
– Voltage drop: 1.5V
– Protection class as per
DIN EN 60529: IP 67*
* only for concentric plug connector when fixed properly
4. Proximity Switches
2 pieces
Page -7-
Type Output Id.-No.
INW 80/S Closer 301 508
Sensing distance 1.5 mm
32
M 8x1
Dimension in pluged-in position appr. 60 mm
42.1
13
10 10
Ø 14.5
Plug length
appr. 10 mm
2 LED's
– switching position
– power supply
available
M 12 x1
300
Ø 3.5
Proximity
switch
M 12x1
Ø14.5
31
50
Ø 5
cable length
3 m
Principle design and dimensions
Output:
shown in non-actuated condition
Do not swing the proximity switch by its
cable.
Do not allow the sensor to make contact with
a detectable object of a hard substance or
do not apply shock to the sensor
Avoid using the proximity switch in
outdoor locations (subject to direct
sunlight, rainwater, etc.)
Do not tighten the proximity switch
excessively.
Avoid using the proximity switch in an
atmosphere of chemicals, especially strong
alkali acid (such as nitric acid, chromic acid,
hot concentrated sulfune acid, etc.)
Do nit pull the wire of the proximity switch
with excessively large force.
