Schwinn 145 - Handlebar Installation Procedure; Attach Handlebars to Frame Assembly

10

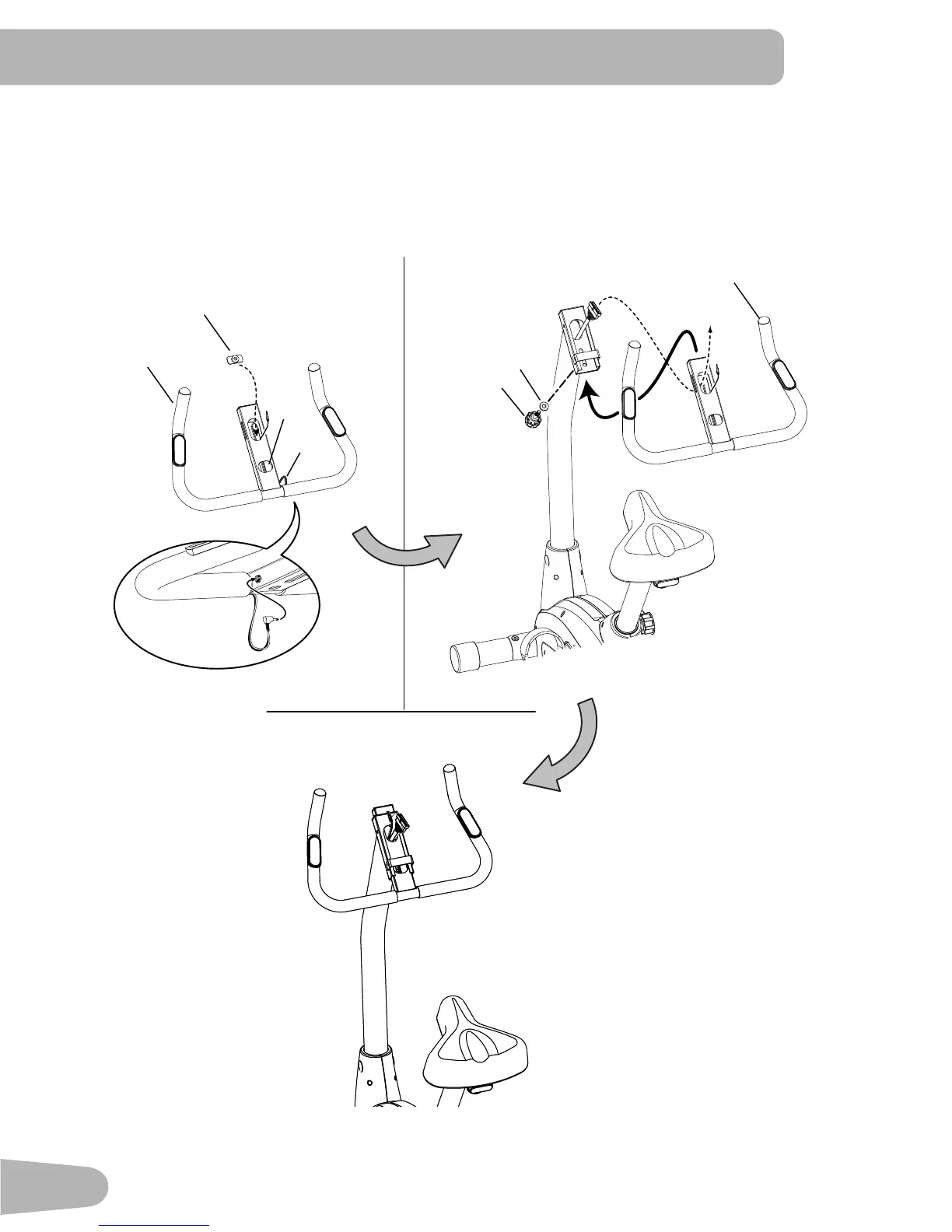

7. Attach Handlebars to Frame Assembly
Note: Put the T-nut (I) into the Handlebar slider and align it with the second hole (9a) to install the Console Slider
AdjustmentKnob(J)andwasher(L).PushtheConsoleMastcableslightlydownandpushtheHandlebar
into the Handlebar slider until the holes are aligned to pull the cable up.
NOTICE: Do not crimp the cables. Make sure that the lower Heart Rate cable (9b) is connected.
9
G
H
9
D
9a
9b
9b
9
