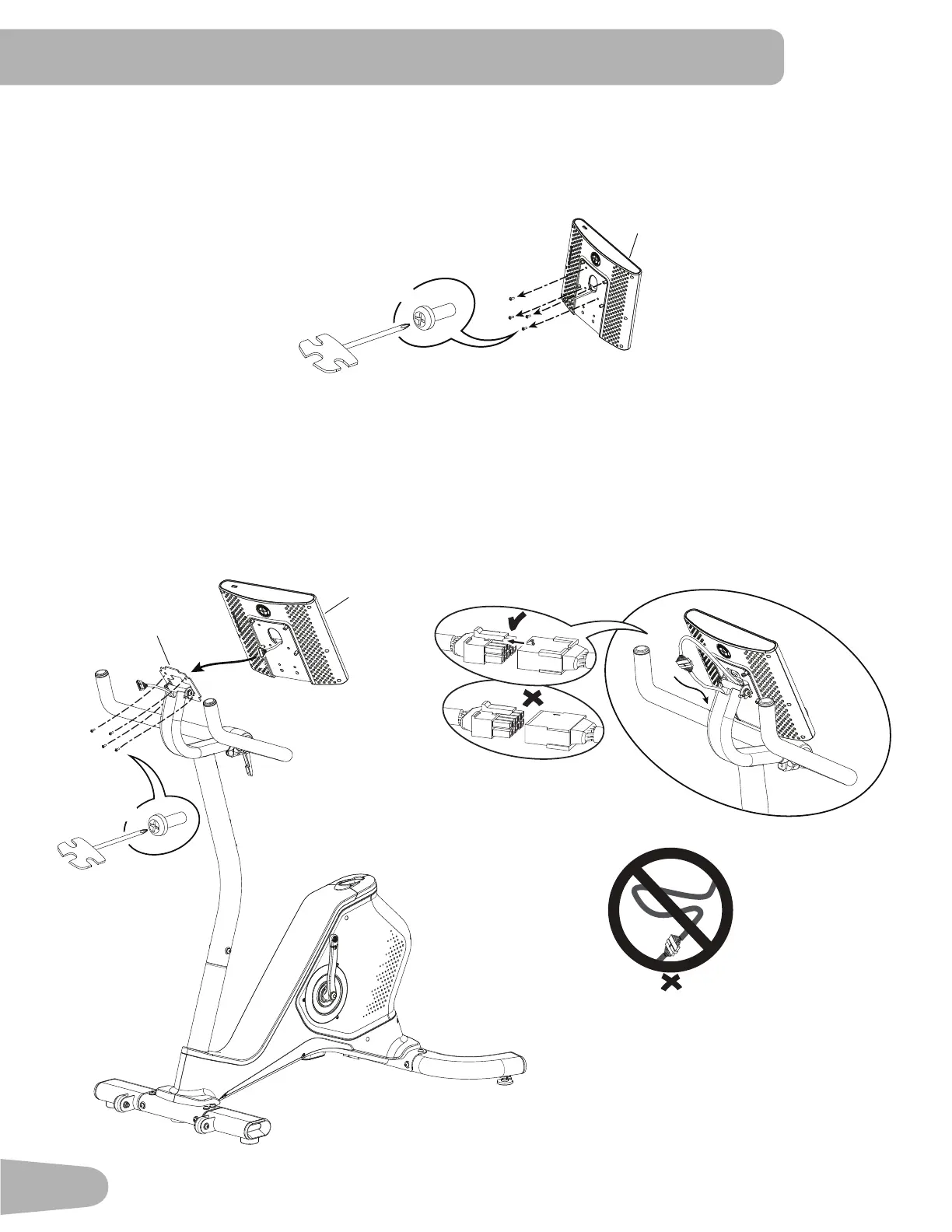

5b. Install the Console Assembly on the Console Mast
NOTICE:7KLVVWHSUHTXLUHVWZRSHRSOHDo not cut or pinch the cables.
Note: Tilt the Console to install the wide tab (10a) at the top of the Console Mount Bracket. Route the Console cable
through the bracket. Attach the Console to the Console Mount Bracket before connecting the cables. Start lower
screws (*) first, then tighten all screws. Connect the Console cable to the Console Mast cable. Align the clips on
WKHFDEOHFRQQHFWRUVDQGPDNHVXUHWKHFRQQHFWRUVORFN3XVKWKHH[WUDZLUHGRZQLQWRWKH&RQVROH0DVW
9
10a
*
X4
#2
5a. Remove Console Screws
Note: Remove the pre-installed screws (*) from the back of the Console.
NOTICE: Do not let the screws fall inside the Console. Do not cut or pinch the cable.
*
X4
#2
9
