Schwinn 190 - Page 11

11

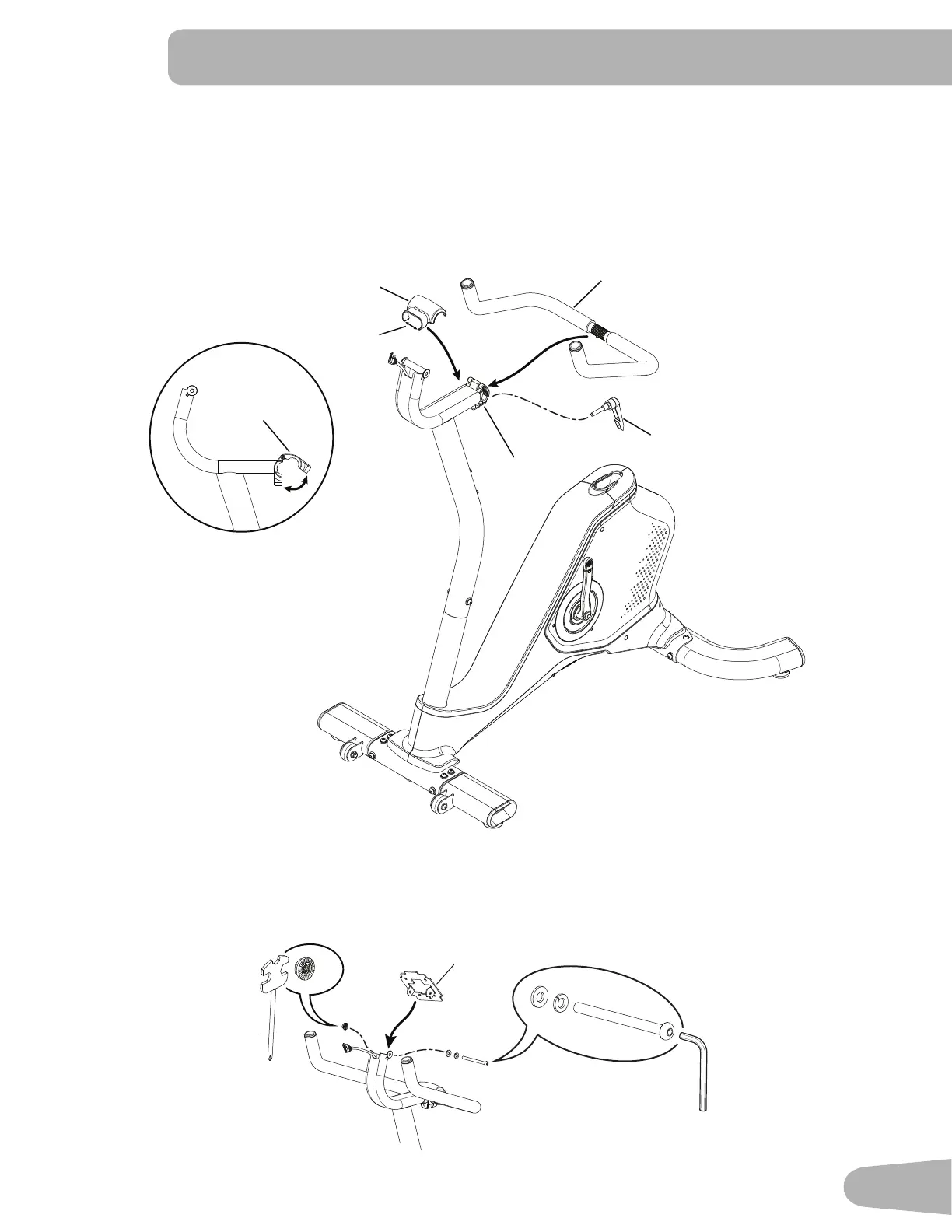

3. Install Handlebars on Console Mast
NOTICE:3XWWKH+DQGOHEDULQWKHEUDFNHWDDGMXVWWKH+DQGOHEDUWRWKHGHVLUHGDQJOHDQGFORVHWKHEUDFNHW
Install the Handlebar Clamp Handle (B) through the holes. Fully tighten the Handle to keep the Handlebar in
position.
Note: To install the Handlebar Mount Cover (8), it may be necessary to spread the opening (8a) slightly before pushing
it down into position on the Handlebar Mount.
7
6a
B
6a
8
8a
4. Attach Console Mount Bracket to Console Mast
NOTICE: Do not cut or pinch the cable.
C
D
E
F
6mm
10
