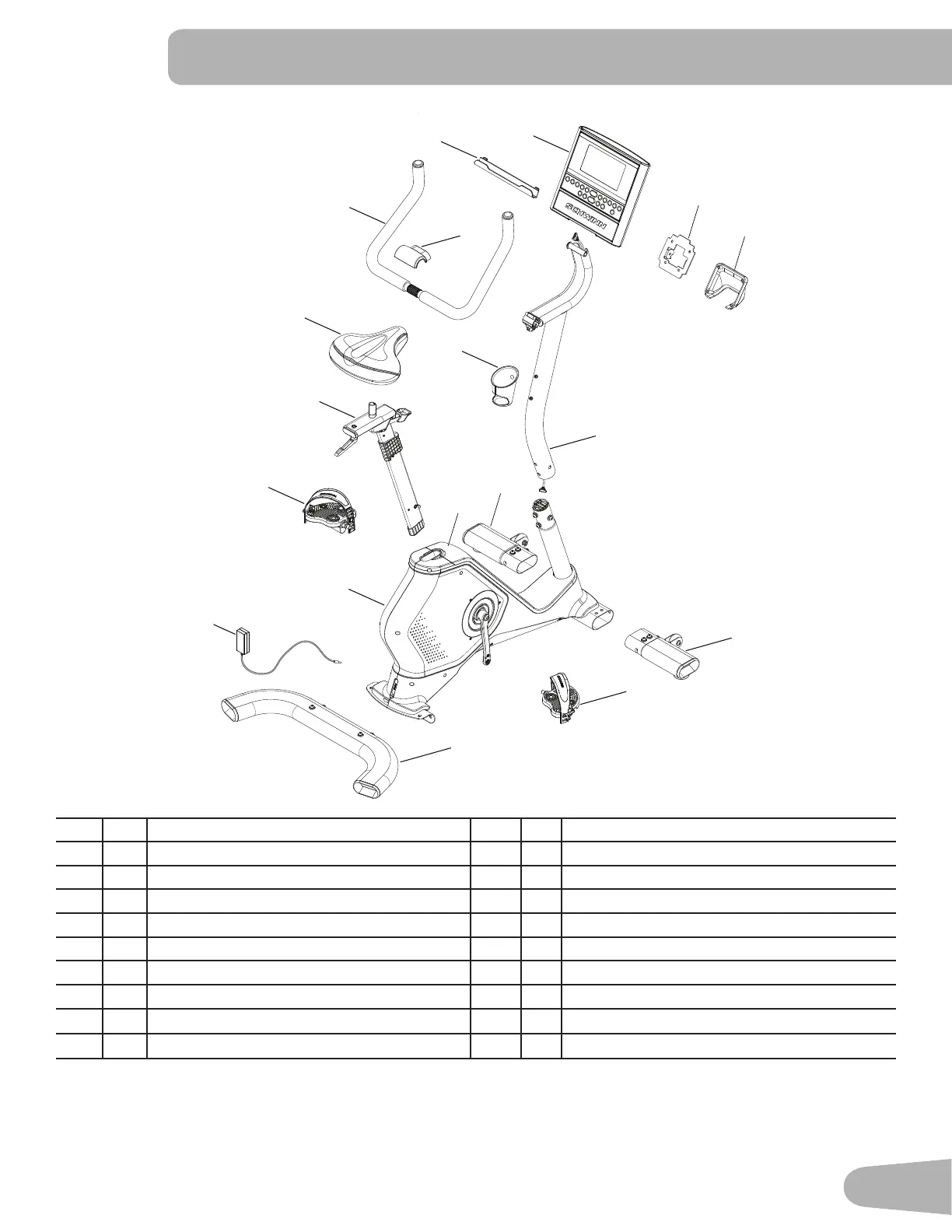

PARTS
Item Qty Description Item Qty Description
1 1 Main Assembly 10 1 Console Mount Bracket
2 1 Rear Stabilizer 11 1 Media Tray *
3 1 Front Stabilizer, Right 12 1 Pivot Cover
4 1 Front Stabilizer, Left 13 1 Seat Post
5 1 Top Shroud 14 1 Seat
1 Console Mast (with Handlebar Mount) 15 1 Left Pedal (L)
7 1 Handlebars  1 Right Pedal (R)
8 1 Handlebar Mount Cover 17 1 Water Bottle Holder
9 1 Console 18 1 AC Adapter
* This item is in bag with Manuals.
Note: A decal has been applied to all right (“ R ”) and left (“ L ”) parts to assist with assembly. Orientation is based
from a seated position on the bike.
3
4
6
1
18
5
7
10
8
13
14
9
12
2
17
15 (L)
16 (R)
11
