4
Mic/Speaker
Installation

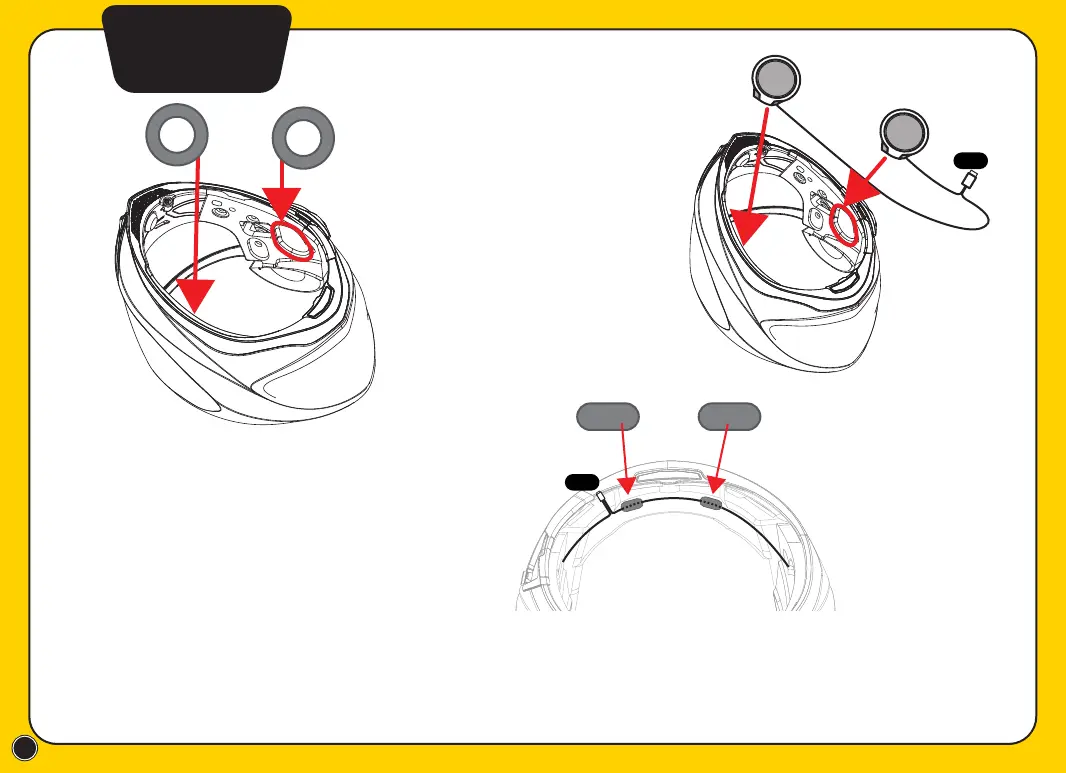

1. INSTALLING CIRCLE VELCRO
Circle Velcro may need to be attached to
the speaker pockets first to fix the
mic/speaker.
1) Remove the liner completely referring
to helmet manual.
2) Find the speaker pockets on EPS, peel
off the sticker paper on Velcro, and put
one of each circle Velcro inside them.
2. MIC/SPEAKER INSTALLATION
After the Velcro sits properly
on the speaker pocket, peel
off the sticker paper on the
Fabric (that was paired to
Velcro), and attach it to the
back of mic/speaker.
Attach the mic/speaker to the
Velcro. Make sure the mic is
positioned at bottom, and mic
hole is facing front (for best
position to accept voices).
Put the mic/speaker cable on the back of bottom EPS referring
to the above picture. You can tidy it up by fixing it with Ellipse
Velcro.
Make sure the male connector (3a) is properly positioned to be
paired with female connector (3A) in the Controller.
3a
3a
To Next Page
