❿ Laser pointer
⓫ Input channels. Black collar for the black TTB2
sensor, red collar for the TTR2 sensor. To plug a
connector, line up the red dot on the plug with the
red mark on the connector. Insert the plug into the
connector without any rotating movement. To
unplug the connector, move up, towards the cable,
the ring located on the bottom of the plug. Only pull
the connector without any rotation.
⓬ Wired headset connector, 6.35 mm jack type.
⓭ USB type-C Port.
⓮ Reset location. Insert a needle, the unit will
restart.
⓯ Shoulder strap rings.

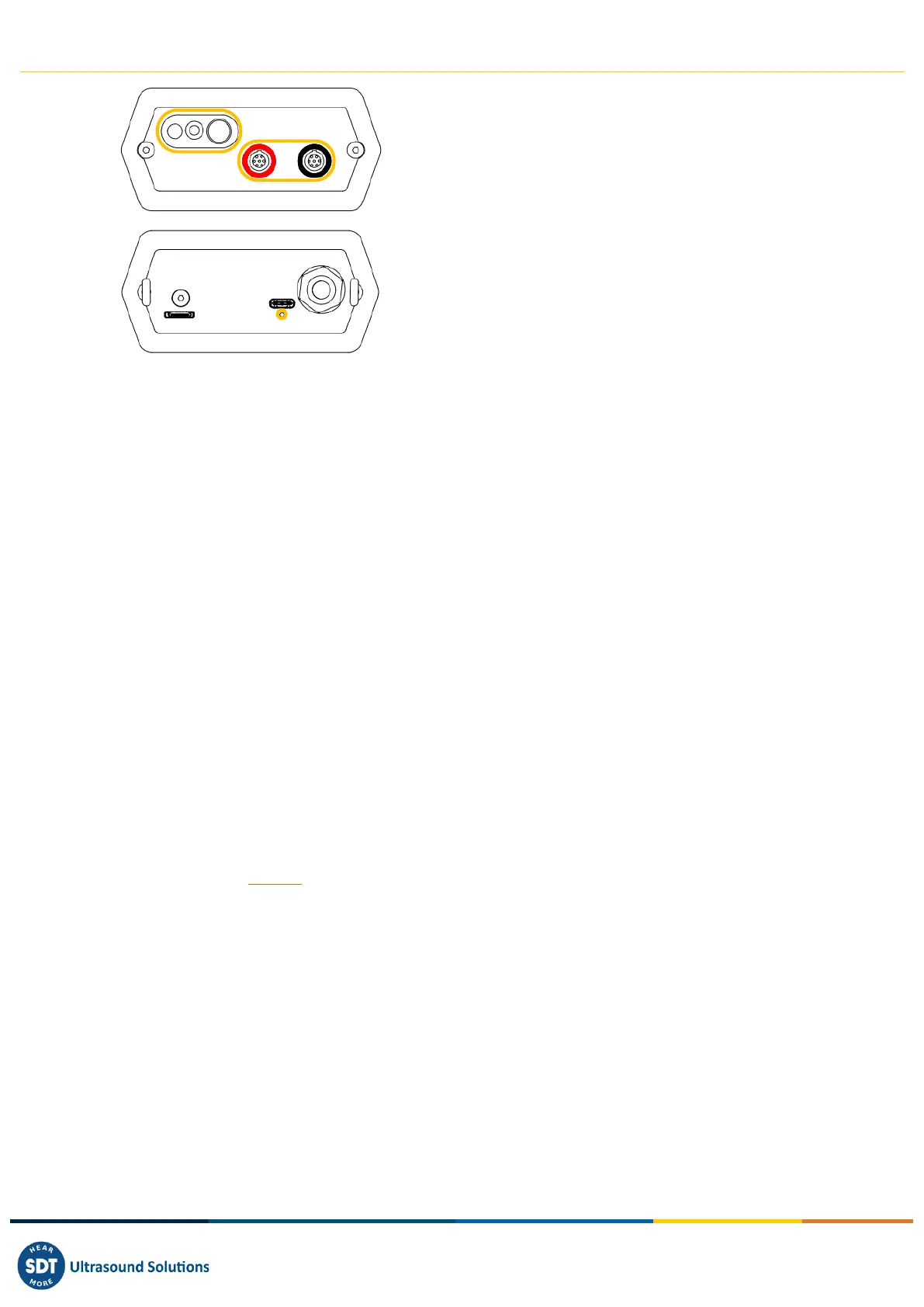

Lateral panels
8.1. Power On
Press the Power button ❽. At power up, device information and battery charge are displayed, then
the Home menu is displayed on the screen.
8.2. Sleep Mode
After a few minutes of inactivity, the screen is powered off for battery saving and the status LED is
blinking green. Press any key to reactivate the display.
8.3. Power Off
Press the Power button ❽. At the prompt, select Yes with the Left navigation key ❻, or No to
continue with the operation. Confirm using Enter ❺.
8.4. Driver
The USB driver is automatically installed from the 340, once connected to your PC.
In case of synchronization issue, the driver file SDT2xxDriverinstaller.exe can download from our
website, by clicking this link.
8.5. Plug & Unplug a Sensor
SDT 340 has 2 input ports with 7-pole LEMO connectors for external sensors. The channel with the red
collar is dedicated to the sensor to be immersed in the liquid as the black one is reserved for the
airborne sensor.
LEMO connectors have a sprung-loaded knurled barrel and a coding device to make the connection
easier.
To plug a LEMO connector, line up the red dot on the plug with the red mark on the connector. Insert
the plug into the connector without any rotating movement.
To unplug, move up the ring located on the bottom of the plug. Be sure to only pull the connector
without any rotation and to never pull on the cable itself.
