G4K Pro User Guide

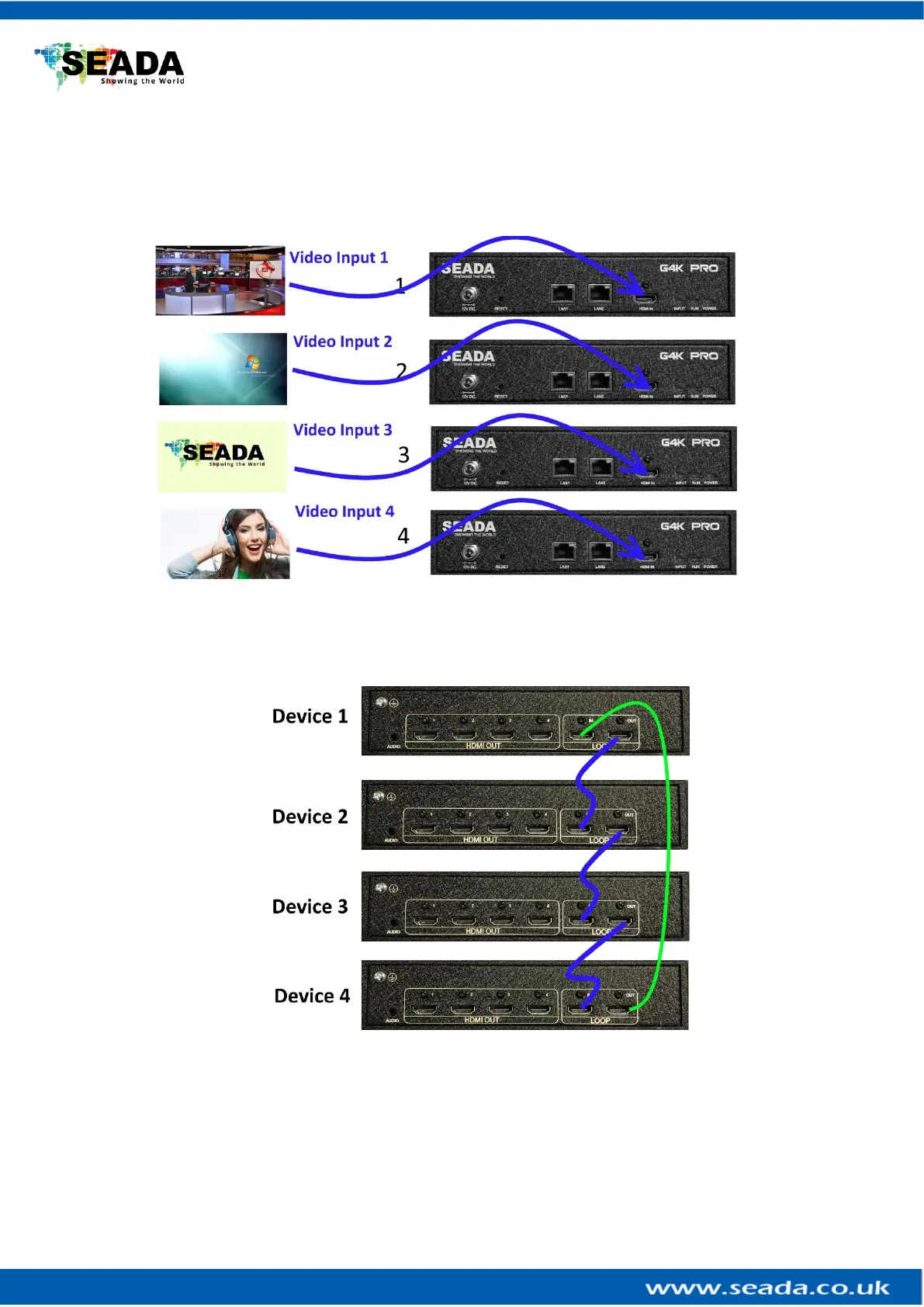

3.1.2.6. G4K Pro Daisy Chain Example
1. Multi video inputs
Each G4K Pro is able to take a 4K video source either from main HDMI Input (Local Data) or from
Daisy Chain input (Cascade Data) from Loop HDMI In port
2. Inputs and Daisy Chain connections using HDMI cables.
Note: The 4
th
HDMI cable is needed if G4K Pro 1 would work at Slave Mode
