18JDL V1.0 8 2022

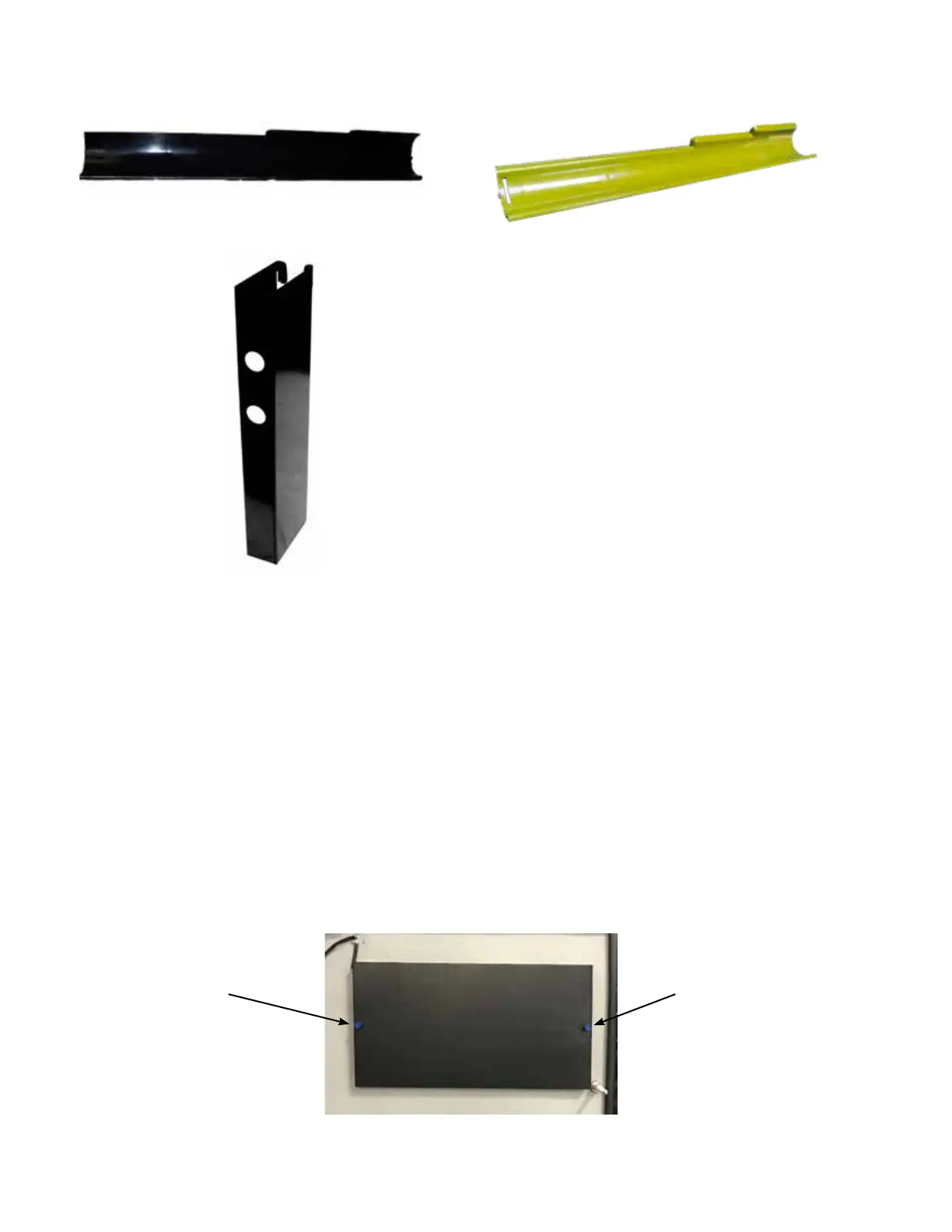

Auger Insert, Large
Figure 18 – Auger Insert, Large
Auger Insert,
Narrow Product
Part # PLI2182
Part # PLI2206
Figure 19 –Back Spacer
Part # SA484
Your machine has a live product display shelf for the beverages. Take care to use packaging that is in perfect
condion and products that are sll within their expiraon date to present the best possible adversement to
your potenal customers. To display your products:
1.) Remove the Drink Display Back Panel by loosening and removing the thumb screws located on either
side of the panel.
2.) Place each beverage, in order of selecon, in the display window taking care to make them evenly
spaced and oriented properly toward the front of the machine where the customer will see them.
3.) Reinstall the beverage back panel.
Note: you may wish to apply double sided tape to the boom of the drink packages to keep them in place
when the door is opened and closed.
Figure 20 – Live Drink Display
Thumb Screw
Thumb Screw
