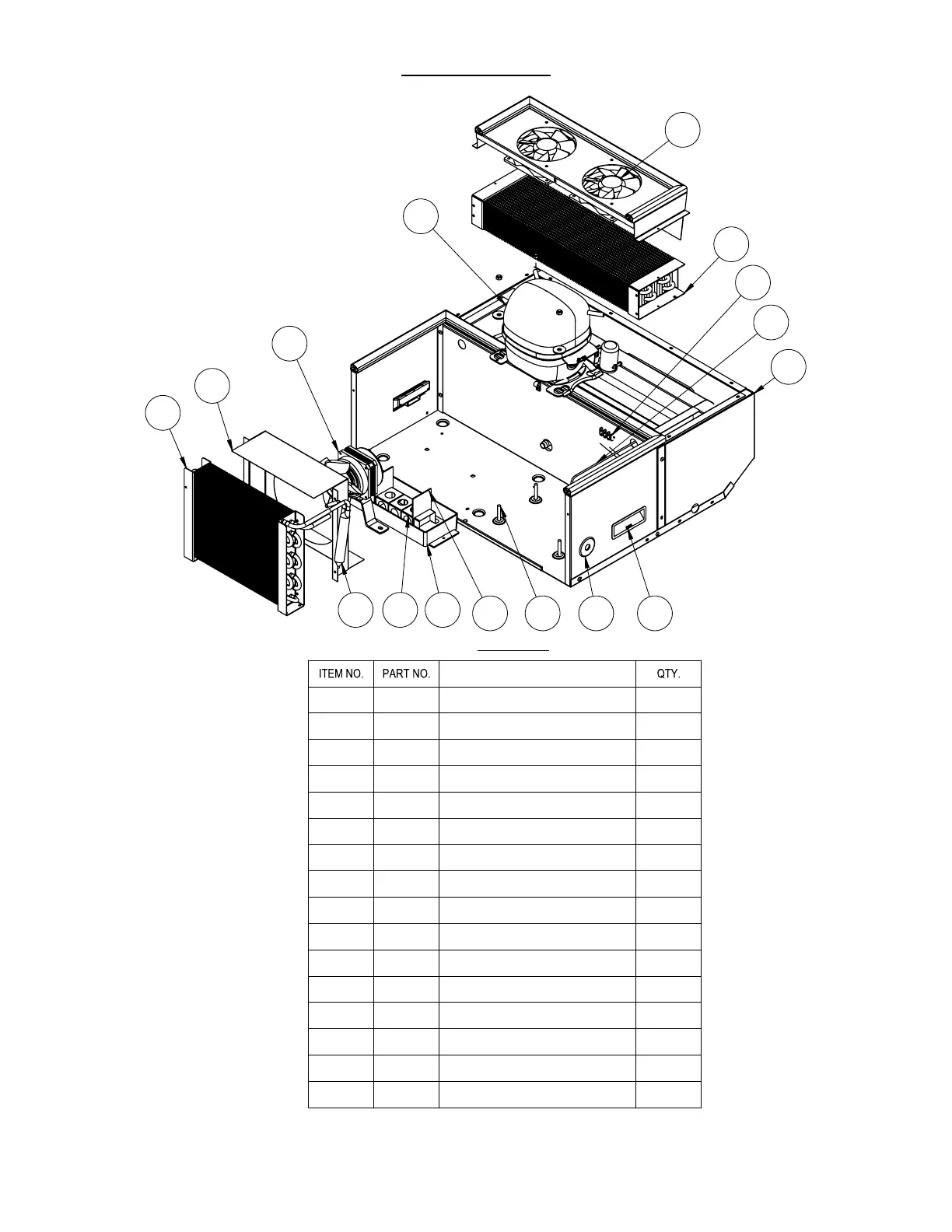

Seaga JDL-2 COMBO - Exploded View - Refrigeration Deck

76JDL V1.0 8 2022
Refrigeration Deck
9
8
4
3
2
1
6
5
7
10 11
12
Parts List
14
15
16
13
DESCRIPTION
1 SAI59016 REFRIGERATION DECK, FOAMED 1
2
REC936 EVAPORATOR 1
3
REC300A FAN MUFFIN 2
4 REI929
COMPRESSOR 1
5
ELI595 TERMINAL BLOCK 1
6
PLI612 CONDENSATE TRAY 1
7
REC928 MOTOR 1
8 STI94076
SHROUD, CONDENSER 1
9
REC934 CONDENSER 1
10
HAI796 GROMMET 1
11 HAI907
HANDLE 2
12 VS198
BRACKET, SPONGE PAD 1
13
REC355 WICK SPONGE 1
14
REI818C DRYER 1
15 FAI864
BOLT 4
16 REI831
THERMISTER 1
