23

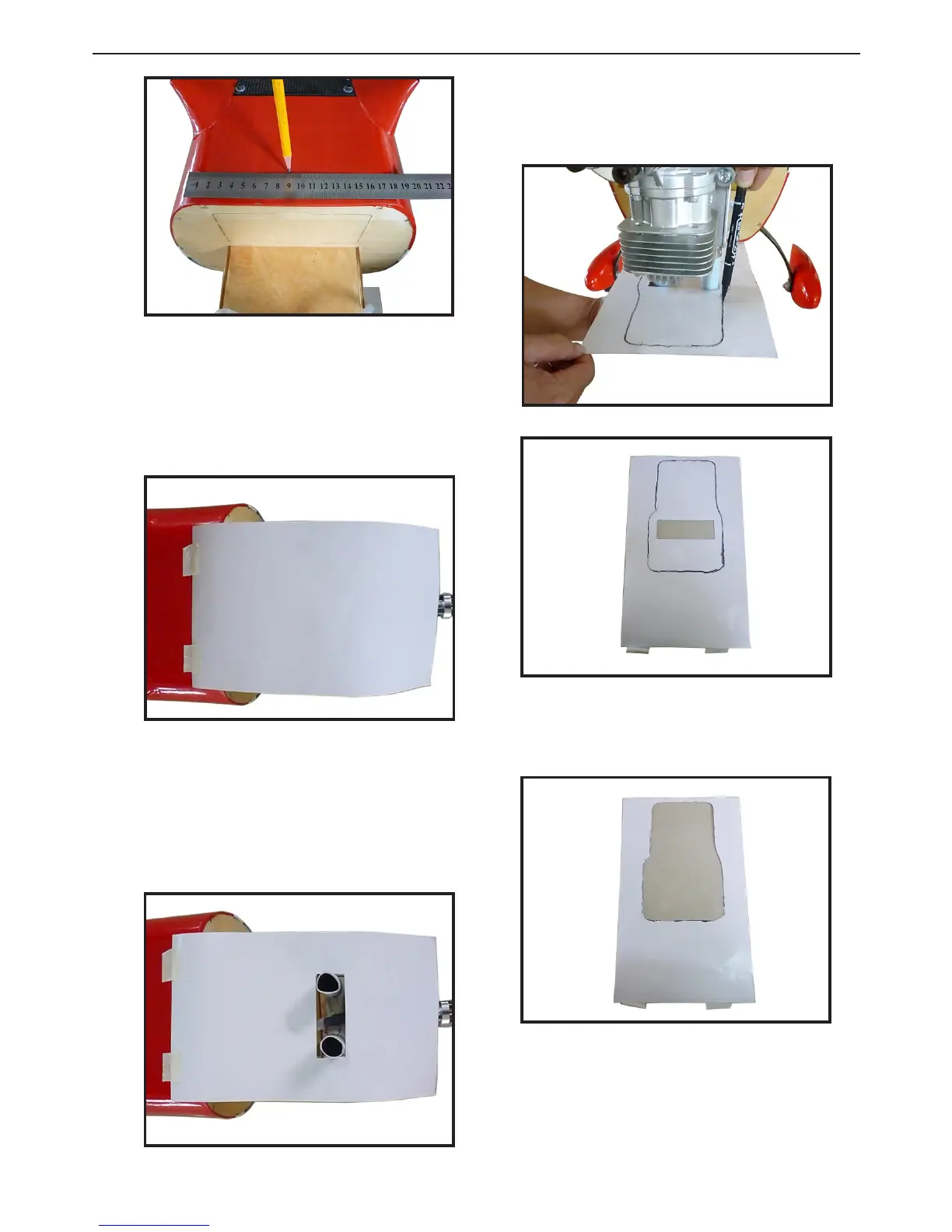

4) Aligning center lines of template and
fuse. Tape the template to the bottom of
the fuse with the back edge of the tem-
plate ush against the a edge of the re-
cessed cowl mounting ring.
5) Using a hobby knife roughly cut a hole
for the muer exhaust stacks to pass
through.
Note: is will allow you to pull the tem-
plate up next the engine cylinder head.
6) Trace around the head of the engine
being careful to keep the template in the
same location.
7) Use a hobby knife to cut out the hot air
exit opening as shown.
8) Check the t of the template at this
time. It may be necessary to make small
adjustments to the cutout to get it to t
properly.
