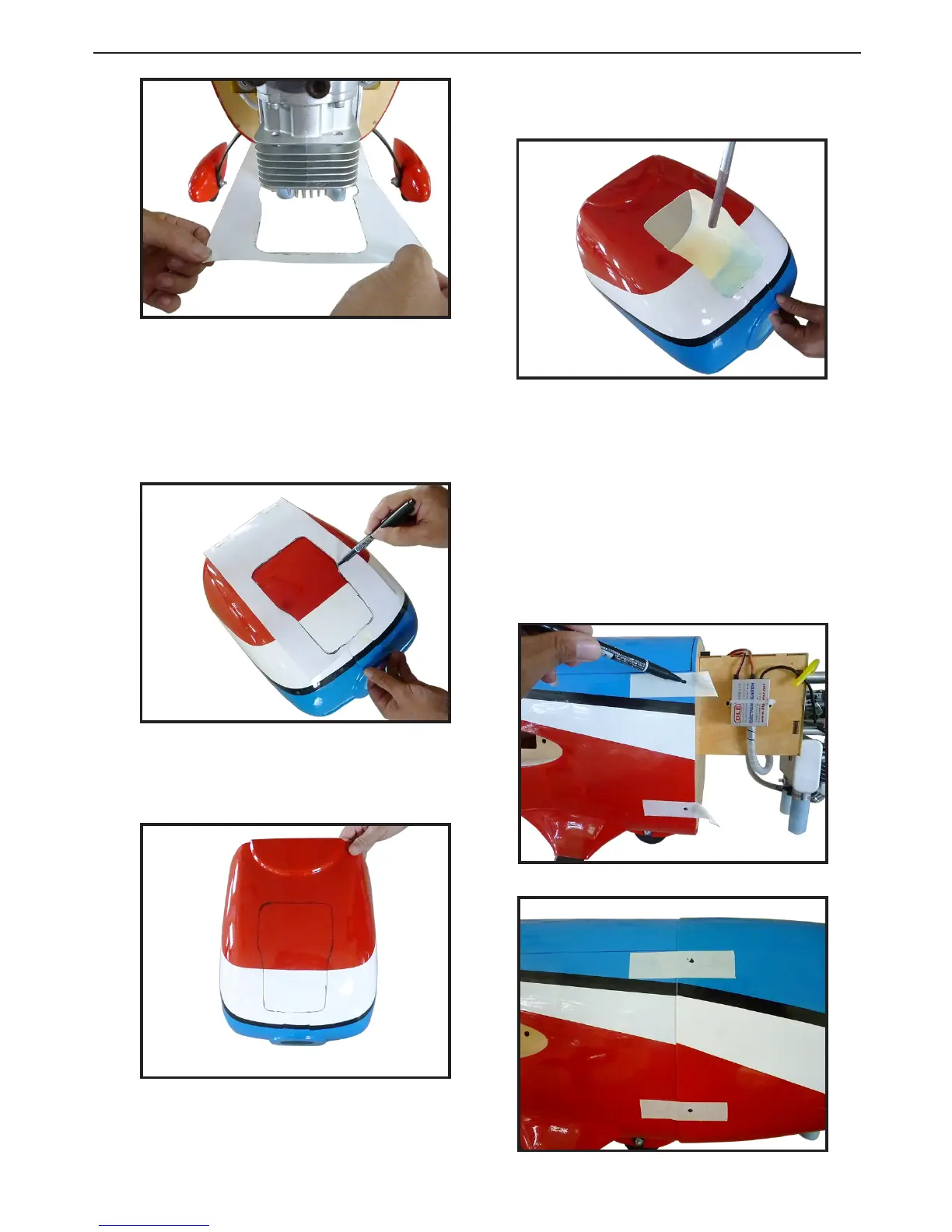

11) Remove the template and use a rotary
cutting tool and sanding drum to cut out
the openings in the cowl.
10) e cowl should be marked as shown.
Be sure to mark all of the lines clearly and
carefully to aid in cutting.
Note: Take care not to cut or scratch the
cowl.
9) Fit template ush with rear of cowl and
align center marks of template and cowl.
Tape template to the bottom of cowl. Use
a felt tip marker to transfer the template
cutout pattern to the cowl and mark cut
location.
13) Mark and tape the cowl to the fuse-
lage using low-tack tape.
12) Install the cowl and check that every-
thing ts correctly and does not come in
contact with the cowl. If needed enlarge
the cutouts and test t again until every-
thing ts correctly.
