9

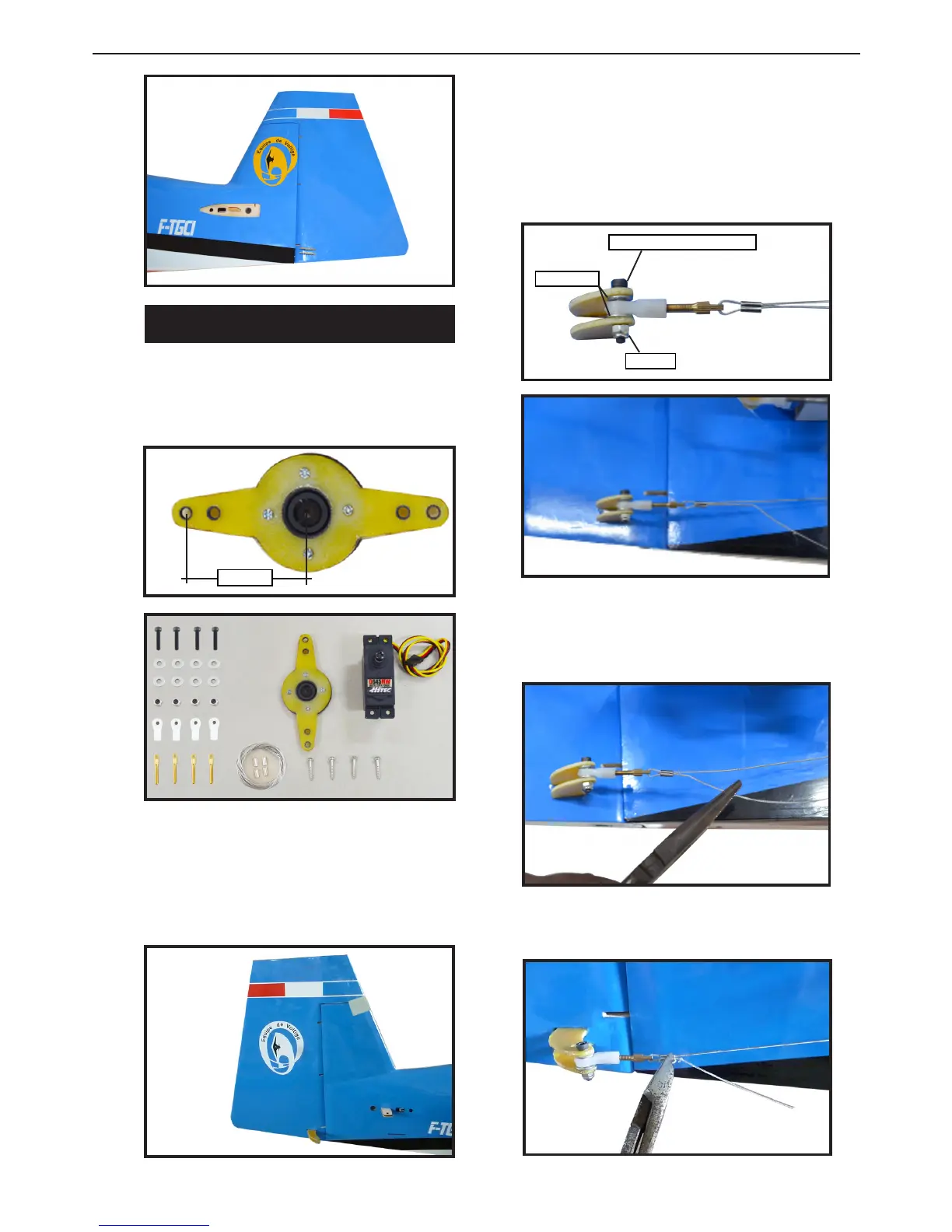

1) Gather one rudder aervo, mounting
screws, servo arm and the rudder control
linkage parts shown below.
INSTALL RUDDER CABLE AND SERVO.
38mm
2) Tape the rudder balance tab to the top
leading edge of the vertical n in the neu-
tral position as shown. is ensures the
rudder is straight when the cables are at-
tached.
3) read the rudder cable through a
brass swage tube, then the threaded cou-
pler, and back through the brass swage
tube on both sides. Pull light tension on
the cable through the coupler on both
sides as shown.
M3x15 Socket Head Cap Screw.
Lock nut.
Flat washer.
5) Crimp the brass tube with a crimping
tool or pliers.
4) Loop the cable back through the brass
swage tube and tighten the second loop
through the brass swage tube as shown.
