HARRIER 3D Instruction Manual
10

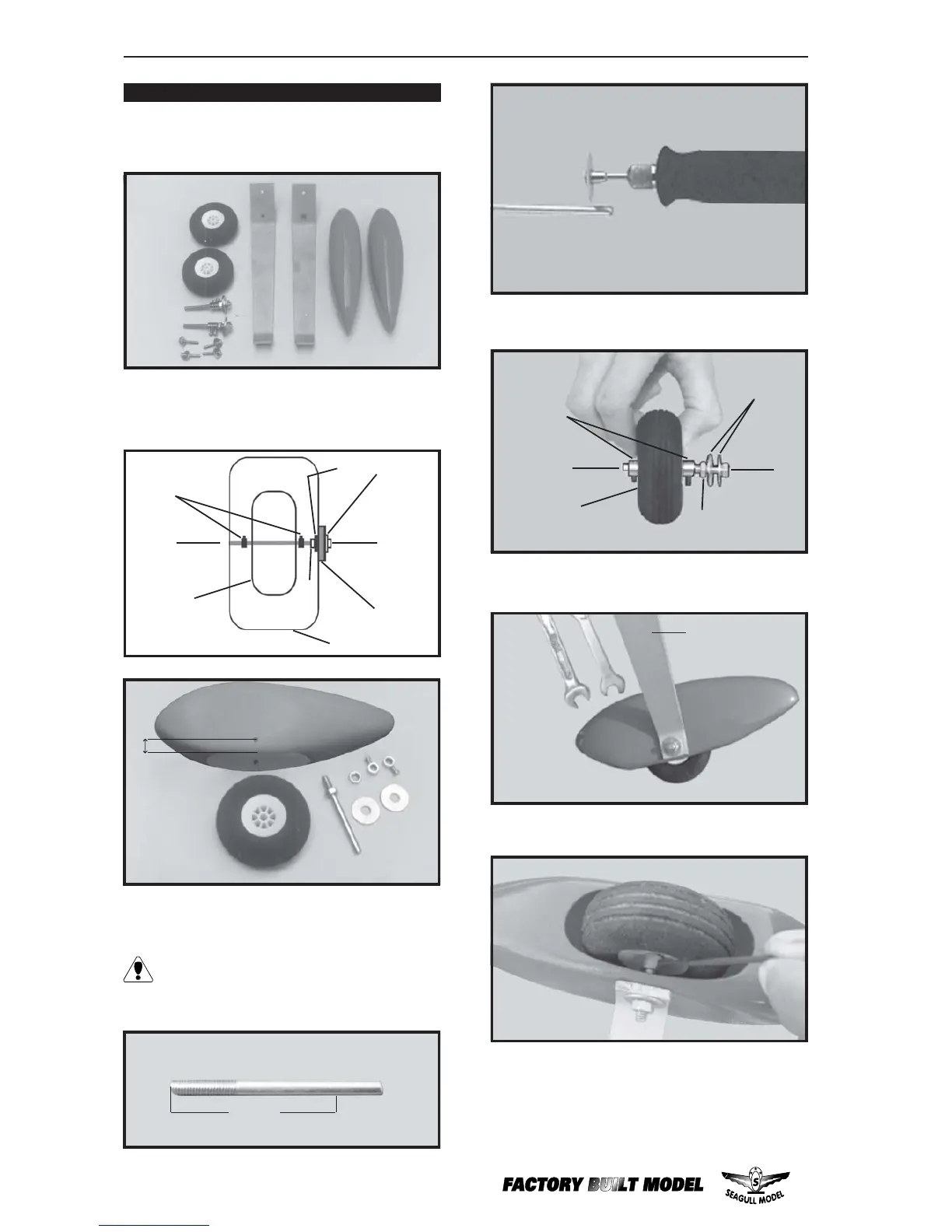

WHEEL AND WHEEL PANTS
 1) Assemble and mounting the wheel pants
as shown in the following pictures.
 2) Follow diagram below for wheel pant
installation:
 3) You have to trim each axle using a toll
cutting and cut-off wheel.
 4) A drop of C/A glue on the wheel collar
screws will help keep them from coming lose
during operation.
Repeat the process for the other wheel.
Wheel Collar.
Axle.
Wheel.
Nut.
Wheel Pant.
Landing Gear.
Nut.
(2) Washer.
8 mm.
(2) Wheel Collar.
Axle.
Wheel.
Nut.
Nut.
(2) Washer.
Landing gear.
Caution when cutting the axles and wear
protective goggles.
46mm
