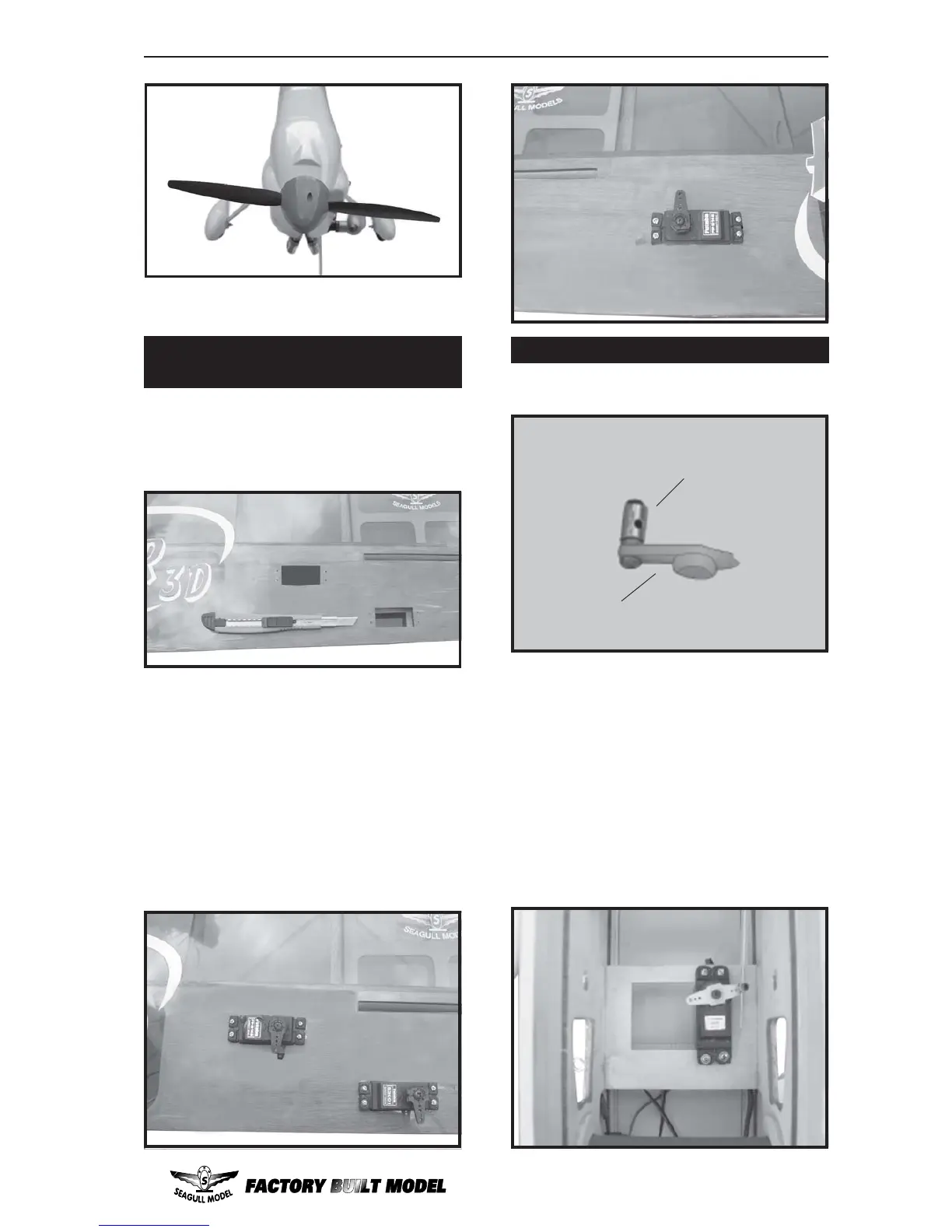

HARRIER 3D Instruction Manual
13
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
THROTTLE SERVO INSTALLTION
1) Install adjustable servo connector in
the servo arm.
3) Secure the servos with the screws pro-
vided with your radio system.
2) Install the rubber grommets and brass
collets onto the throttle servo. Test fit the servo
into the aileron servo mount.
3) Secure the servos with the screws pro-
vided with your radio system.
4) Install the pushrod throttle.
1) Locate and cut out the covering film
from the servo holes in both sides of fuselage.
Adjustable Servo connector.
Servo arm.
ELEVATOR - RUDDER SERVO
INSTALLATION
2) Install the rubber grommets and brass
collets onto the aileron servo. Test fit the servo
into the aileron servo mount.
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
