RV-8 ARF 35-40cc
Instruction Manual.
34
11.
12.
5mm

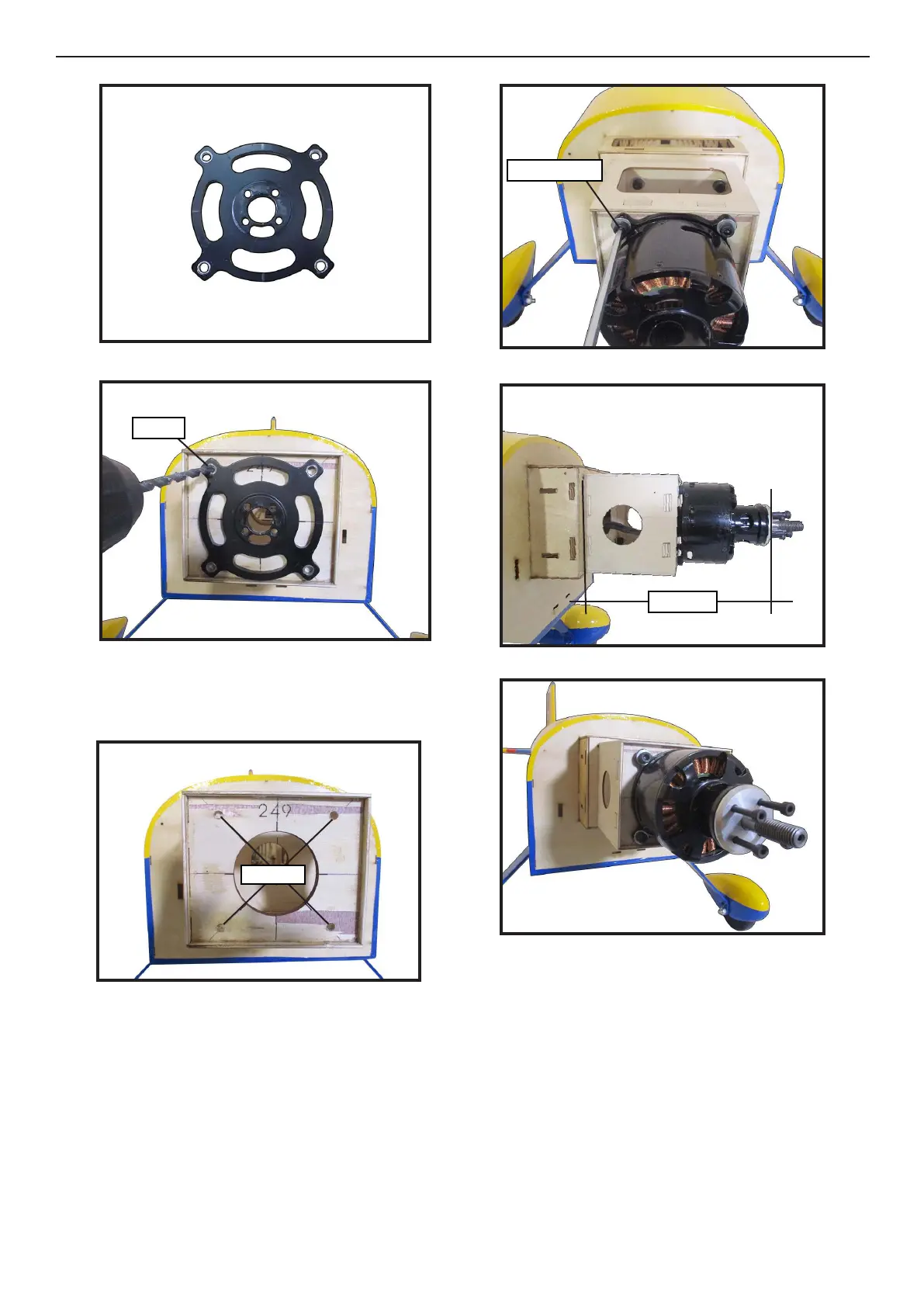

Attach the motor mount to the front
of the electric motor box using four
6.5mm blind nut, four M5x25mm hex
head bolts to secure the motor. Please see
picture shown.
en, use 5mm drill bit to enlarge the
holes on the electric motor box.
13.
14.
15.
160mm
M5x25mm
16.
Attach the speed control to the side of
the motor box using two-sided tape and
tie wraps. Connect the appropriate leads
from the speed control to the motor. Make
sure the leads will not interfere with the
operation of the motor.
6.5mm
