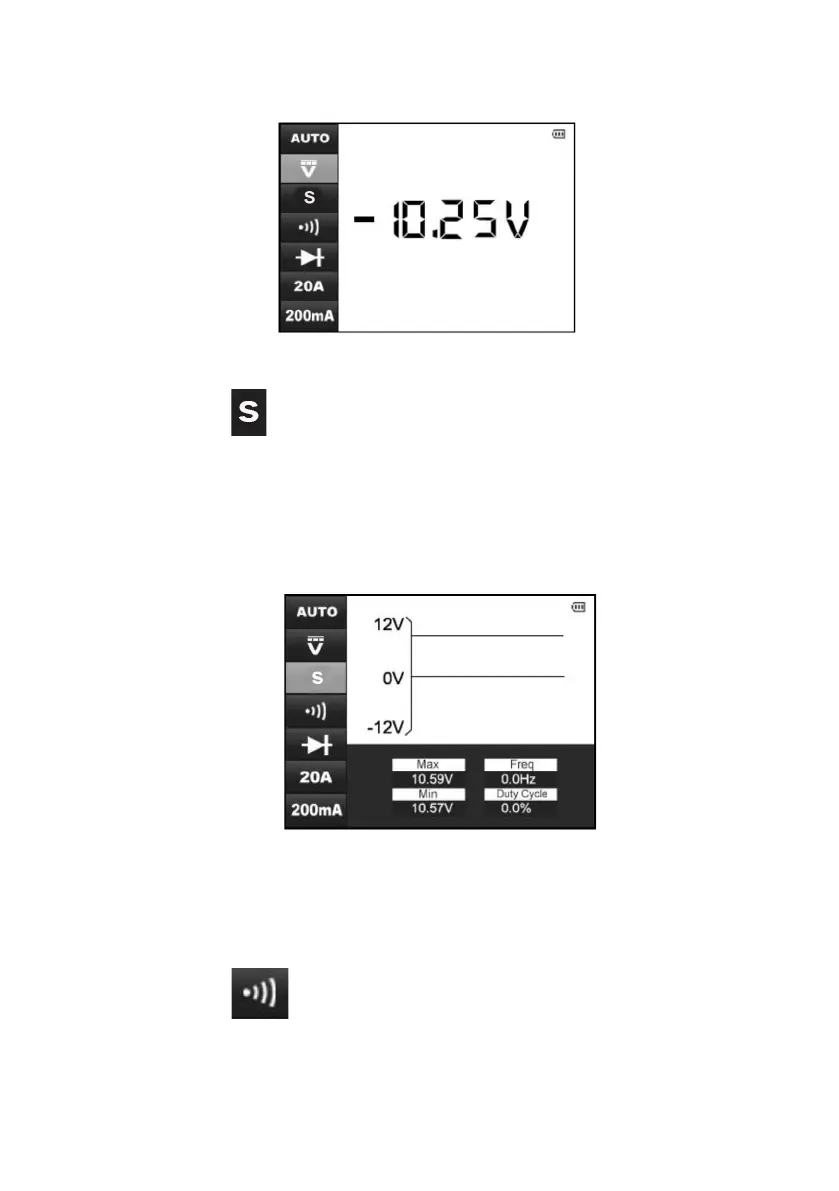

Figure 7.1
7.3 AC Voltage
While the tool is in this mode, contact the probes to a
circuit, the LCD display will read the AC voltage with a
resolution of 0.02 volt.
Figure 7.2
NOTE: If the voltage is less than 3Volt, the result will display
with a resolution of 0.01volt.
7.4 Continuity
While the tool is in this mode, contact the probes to a circuit,
the LCD display will read the resistance between these
two probes.
72
