Legend for 2.1 & 2.2

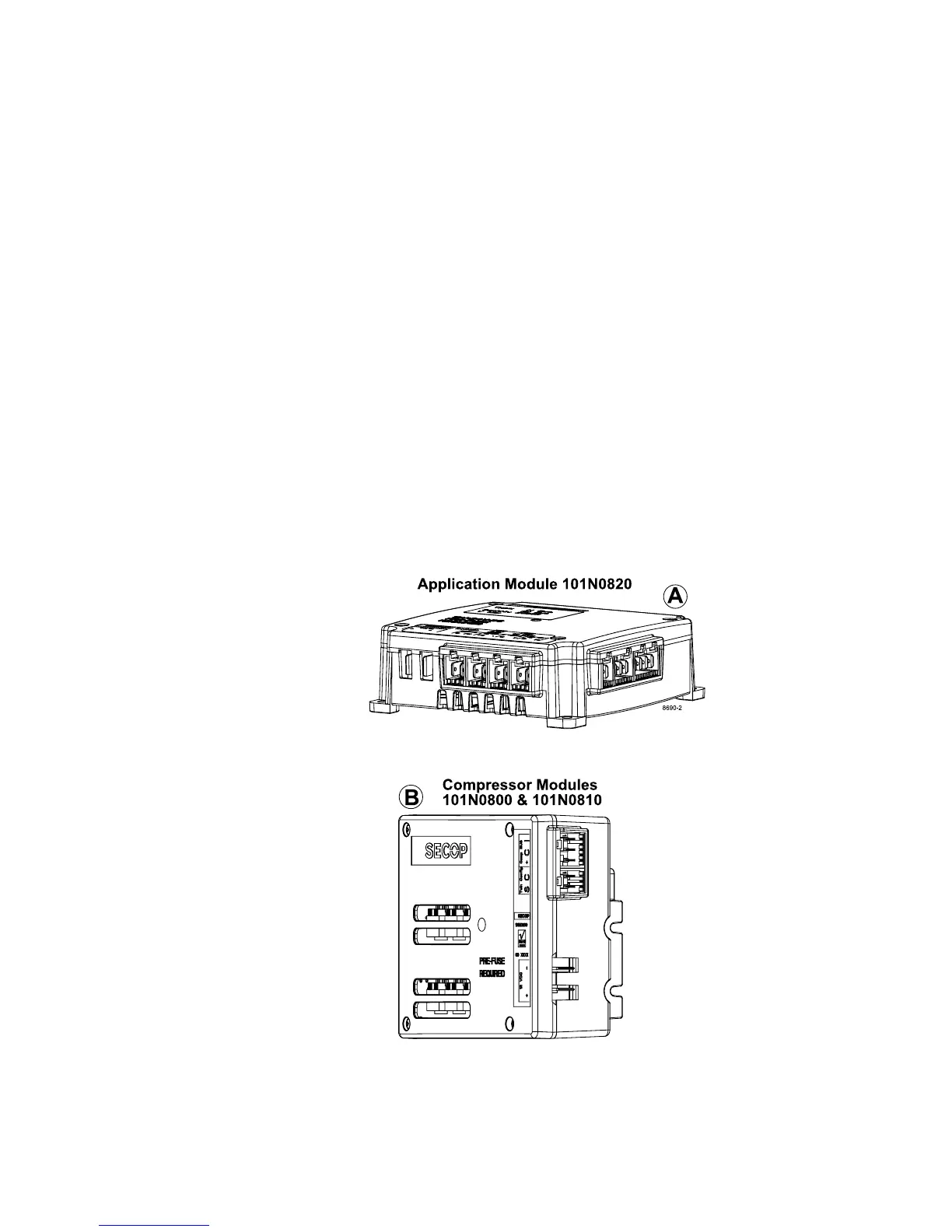

A. Application module 101N0820
B. Compressor module 101N0800, 12 V DC / compressor module 101N0810, 24 V DC
C. Line cords
D. Single or twin compressor communication cable assembly
1. Mounting screws
2. Battery
3. Fuse
4. Main switch
5. Evaporator fan
6. Condenser fan
7. Mechanical thermostat
8. NTC temperature sensor (electrical thermostat), alternative: mechanical thermostat
9. NTC auxiliary temperature sensor
10. Compressor(s)
11. Secop One Wire/LIN gateway communication interface
12. Modbus-compatible device
13. Secop Bluetooth
®
gateway communication interface
See Intructions DES.I.100.H_.02 for details.
2.2
Connect Cables
