Using the Web Server

18.2.3 Configuration Status

The Configuration Status page shows a list of the nodes that comprise the MMX system.

The CPUs that are in use have a CPU number beside their associated node.

To view the Configuration Status:

• Click Panel Information, and then click Configuration Status.

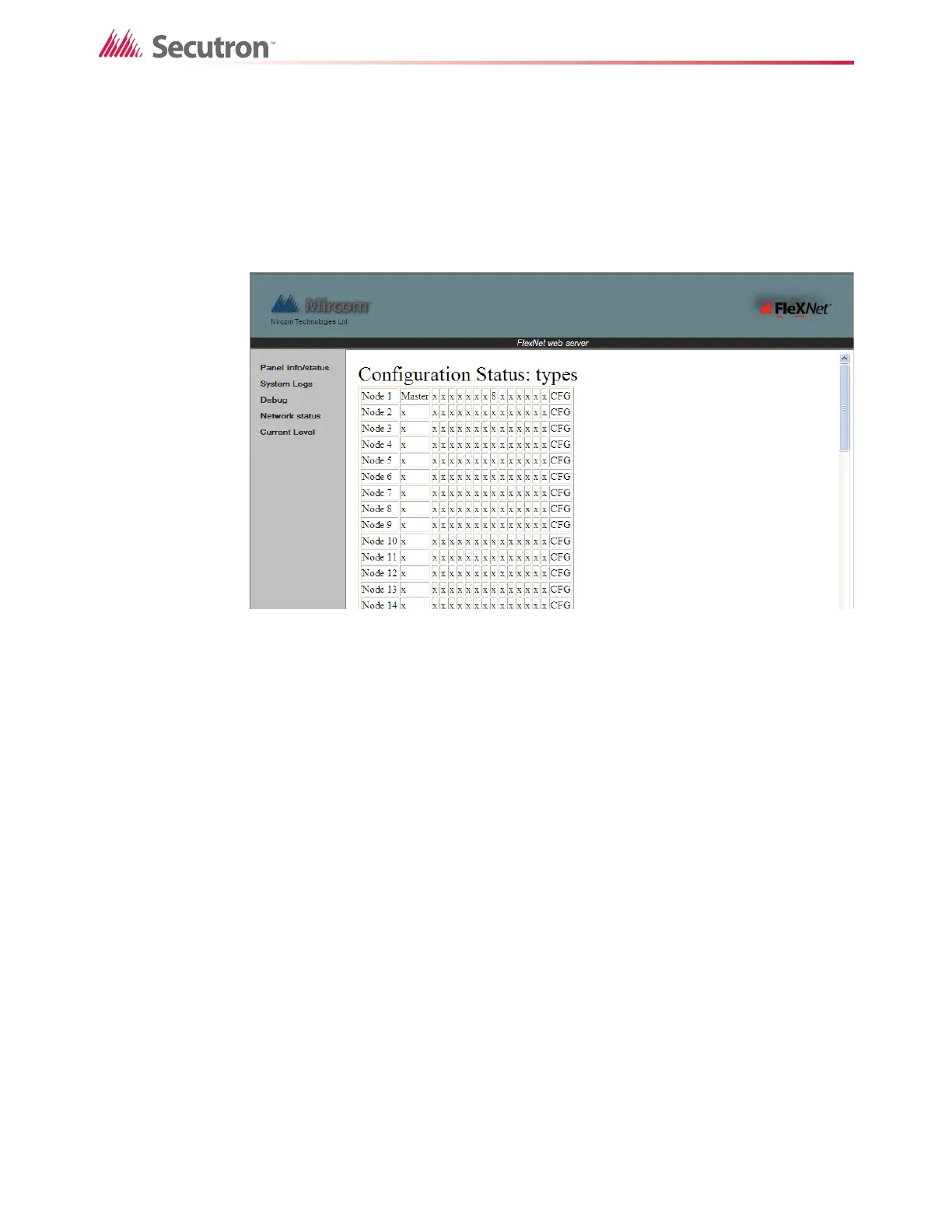

Figure 91 Configuration Status
