154

Using the Configurator

To see the Network Node Details

• Select a node in the Job Tree.

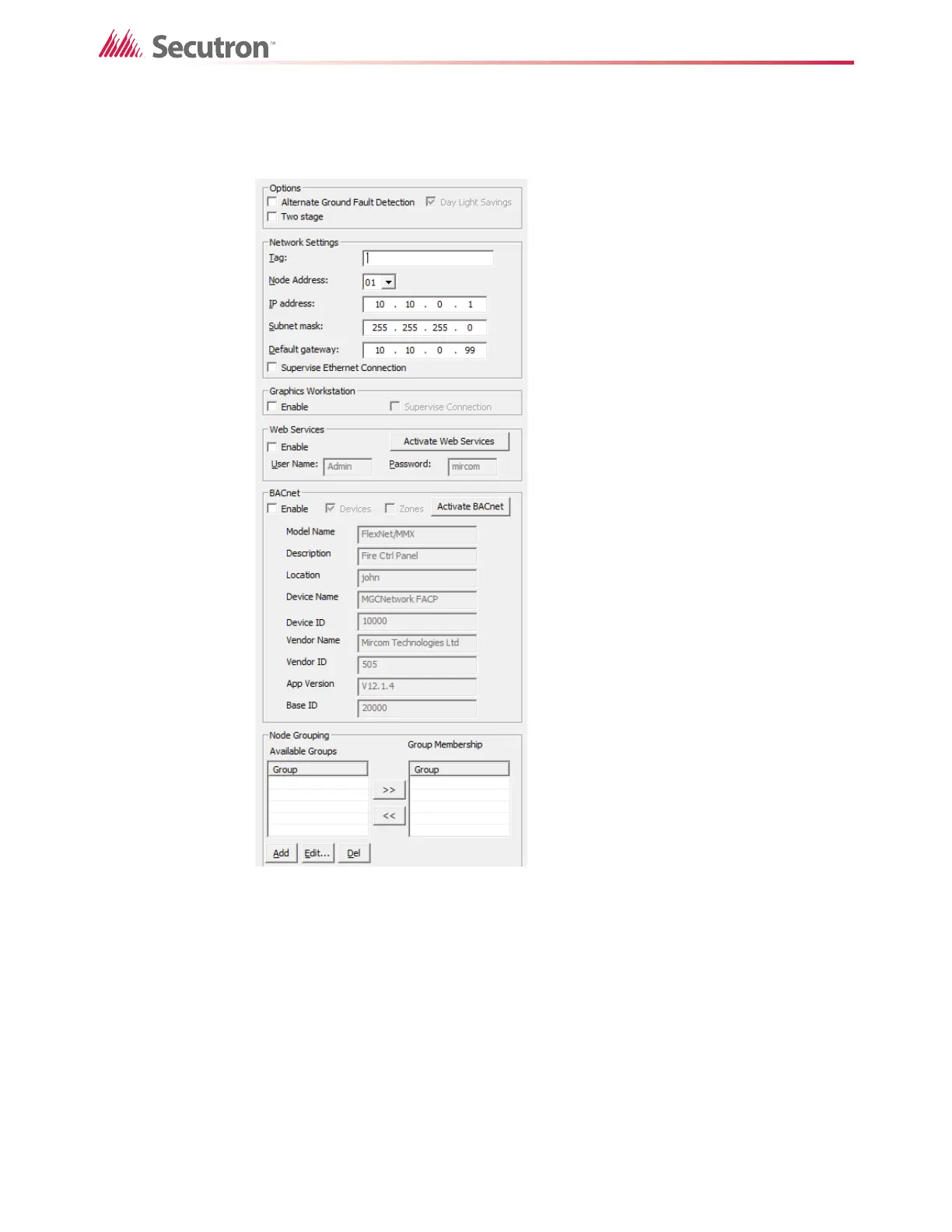

Figure 105 Network Node Details

Alternate Ground Fault

Detection

If you select this check box, the system will use alternate

ground fault detection settings to compensate for the

capacitance and resistance of long audio cable runs. See

section 12.5 on page 101.

Two Stage Check to enable two stage.

As per UL 864 and UL 2572 only a setting of Single Stage

(disabled) is permissible.

Tag A description of the node. This appears in the Job Tree.

Node Address The node address.
