Segway Personal Transporter SE Service Manual
5–4
Fenders
x2 SE Fender Frame
Removal
Tool Required: 4 mm hex wrench
1. Make sure the PT is powered off and unplugged.
2. Remove the Tire/Wheel Assembly (page 4–3).
3. Remove the Fender (page 5–3).
4. Using a 4 mm hex wrench, remove the three
fasteners holding the Fender Frame to the gearbox.
See Figure 5–3. Discard the fasteners.
5. Remove the Fender Frame.
NOTICE
The Fender and Fender Frame can be removed as a
unit (not shown). Fender Frame fasteners should be
discard and replaced with new ones.
Installation
Tools Required: 4 mm hex wrench
Torque wrench
1. Make sure the PT is powered off and unplugged.
2. Place the Fender Frame on the Gearbox.
See Figure 5–3.
3. Using a 4 mm hex wrench, install three new Fender
Frame fasteners. Torque to 6.0 N-m (4.5 ft-lbf).
4. Install the Fender (page 5–3).
5. Install the Tire/Wheel Assembly (page 4–3).
6. Perform post-service tests (page A–1).

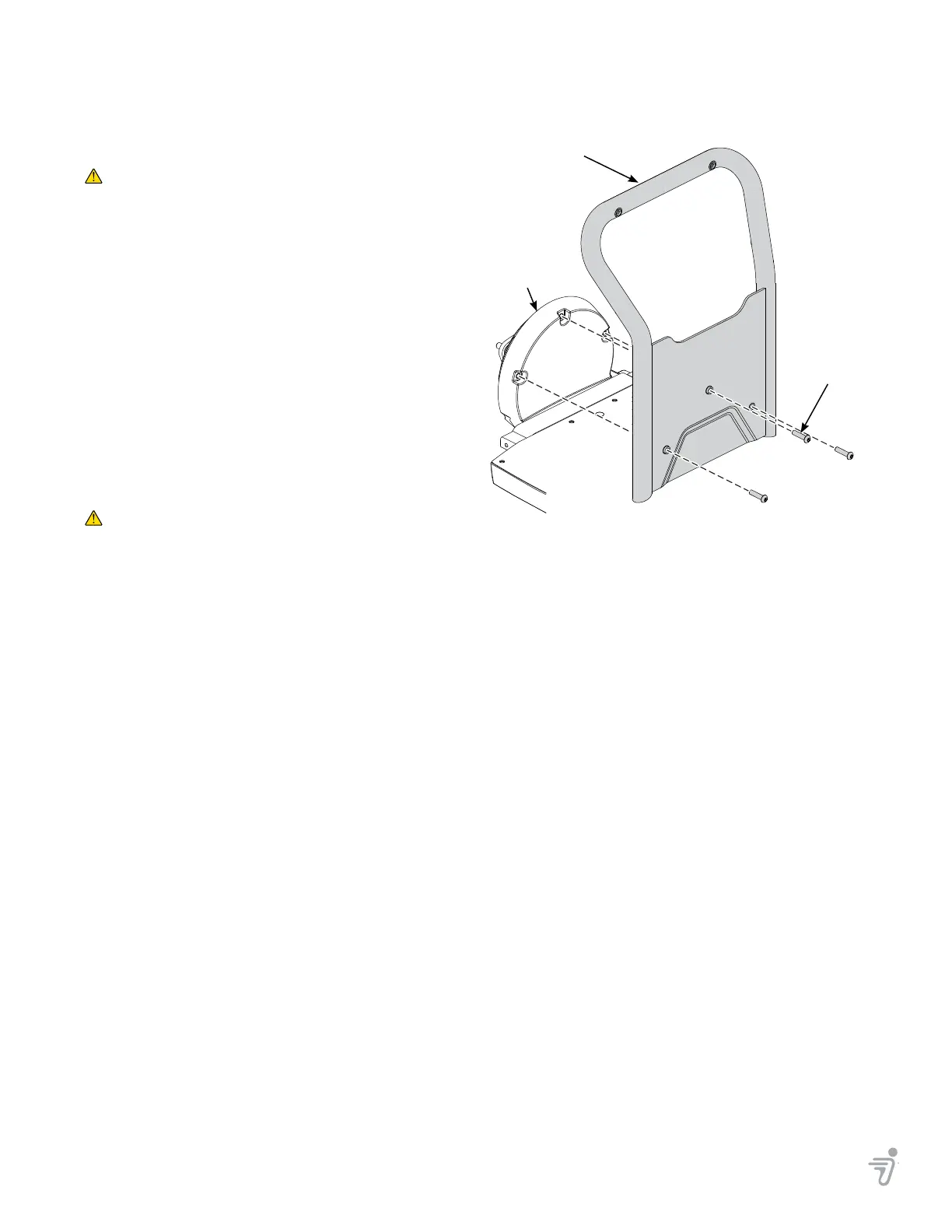

Fender Frame
Gearbox
20553-00002
6.0 N-m (4.5 ft-lbf)
Figure 5–3: x2 SE Fender Frame
