Seko OPL BASIC - 1.5 MATERIALS REQUIRED DURING INSTALLATION; INSTALLATION; 2.1 MOUNTING SYSTEM

OPL BASIC cod. 0000136322
rev. 2.2
3
1.5
MATERIALS REQUIRED DURING INSTALLATION


Two pole wire: 2x0.75
-
H
-
05 VVF (qty 2; length 2 mt
-
for trigger signal);


Two pole wire: 2x1.5
-
H
-
05 VVF (qty 1; length 2
mt
-
for power supply);


4x6 mm copper tubing (qty 1; length 2 mt
-
for water solenoid valve).

The lengths indicated above are for typical installations. Your installation may require different
lengths
.

An installation kit is available (see Mainten
ance & Accessories).
2
INSTALLATION
Mount the unit on a nearby wall (using suitable hardware) of the laundry machine.
Locate
a mounting spot where operators can access the Start button and within 20 feet of the chemical supply. Always
install the syst
em at a safe, convenient height for the operators to load or unload solid containers or to perform
maintenance.
Check all applicable plumbing and electrical codes before proceeding with the installation. This will help to ensure that
the system is instal
led in safe and suitable manner. A wiring schematic of the laundry machine should be used as
reference for making electrical connections this is typically provided by the laundry machine manufacturer if one cannot
be located on the machine itself.
2.1
MO
UNTING SYSTEM
Apply the panel unit system with the brackets and screws supplied:


Determine a suitable location for the system;


Using the bracket as a template, mark and drill holes for bolting the system to the wall;


Insert the anchors in the holes;


Bolt t
he bracket in place with the hardware provided;



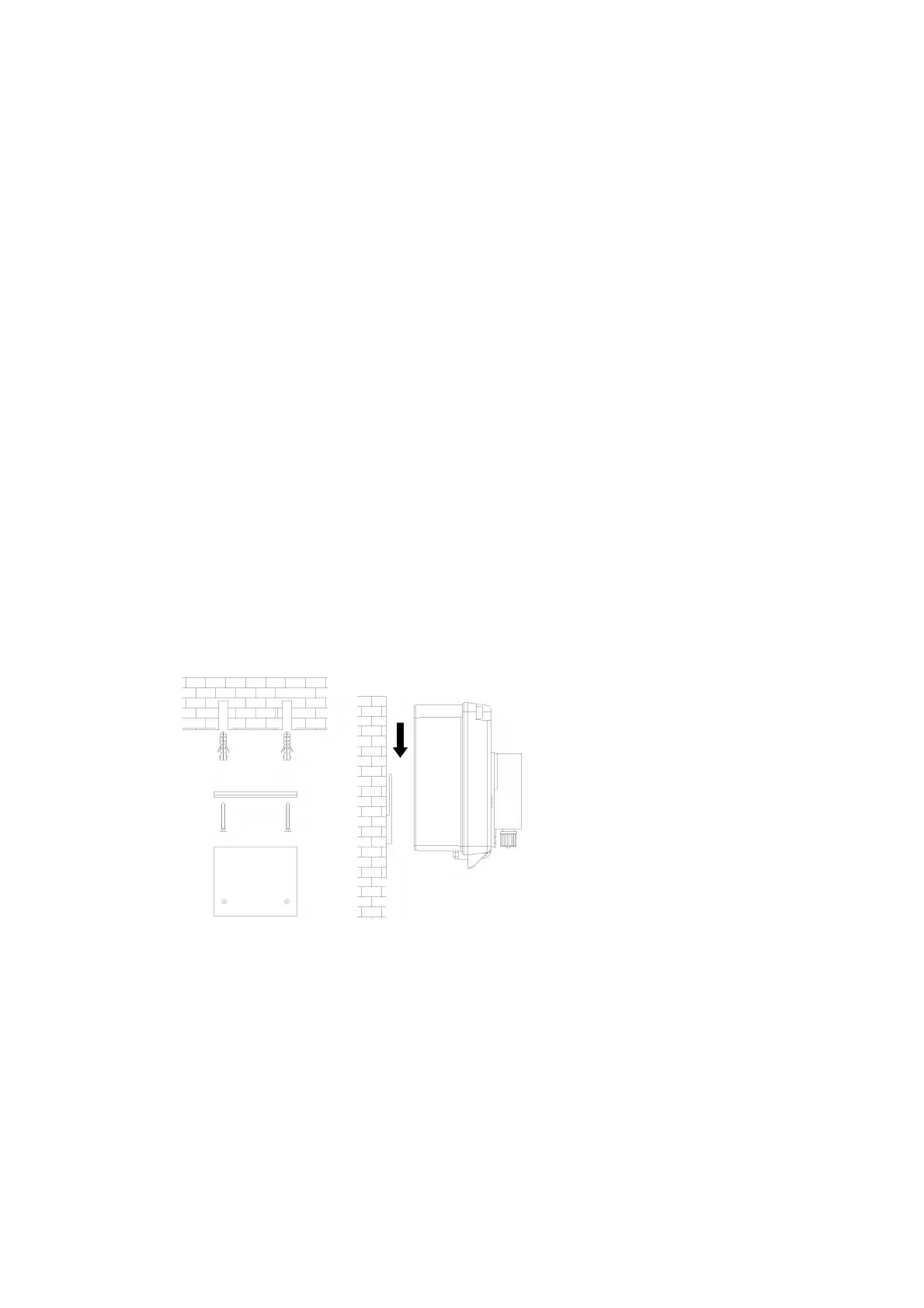

Mount the system with the bracket as the picture below;


Open the Cabinet Front by unscrewing the upper screws ¼ of a turn:
1
