18

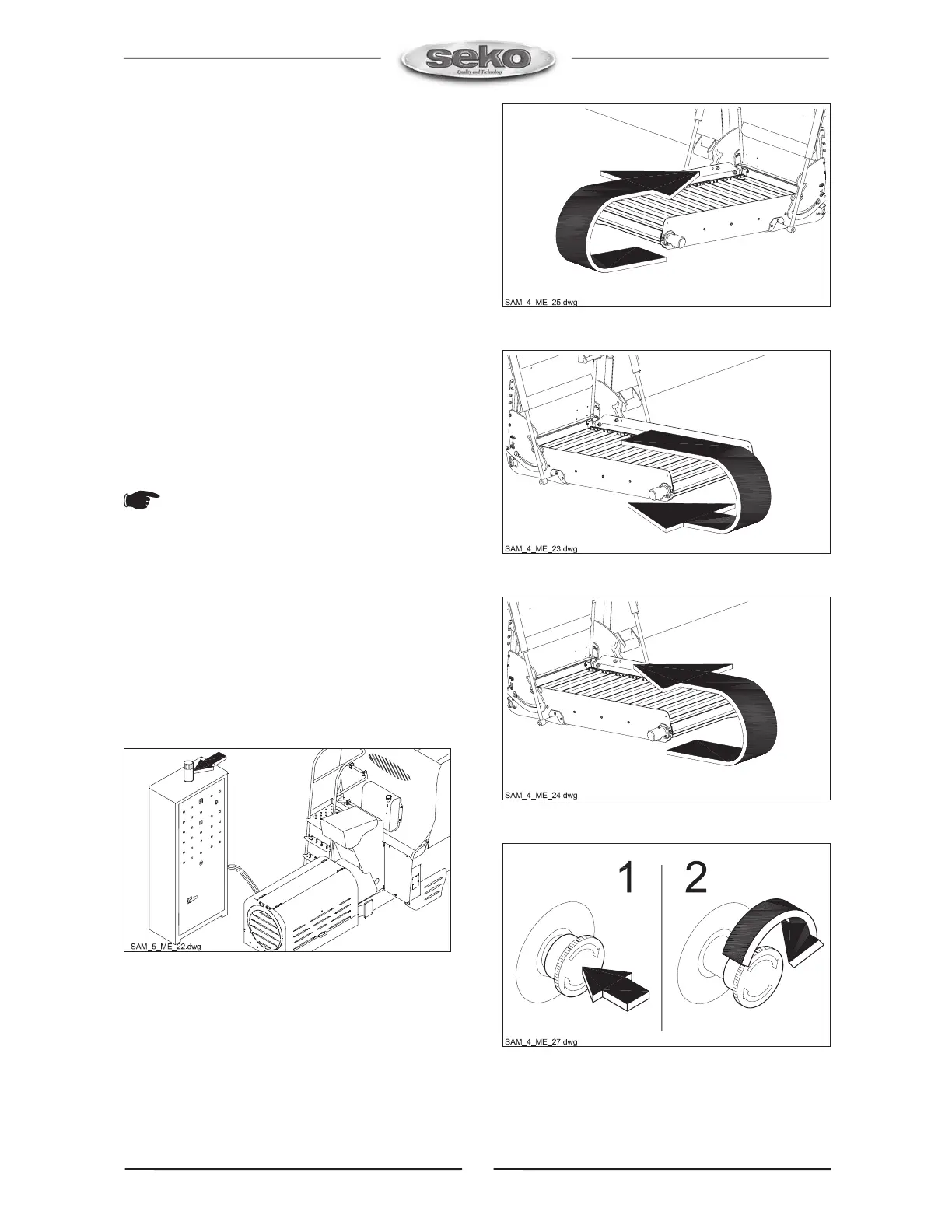

28) Push button for right side conveyor reverse
rotation ( 28 Fig. 13)
By pressing this button we activate rotation of discharge
conveyor in rotation direction as shown in Fig. 29. To
disingage operation press button 26 Fig. 13
29) Push button for left side conveyor direct
rotation ( 29 Fig. 13)
By pressing this button we activate rotation of discharge
conveyor in rotation direction as shown in Fig. 30. To
disingage operation press button 13 Fig. 13
30) Push button for left side conveyor reverse
rotation ( 30 Fig. 13)
By pressing this button we activate rotation of discharge
conveyor in rotation direction as shown in Fig. 31. To
disingage operation press button 13 Fig. 13.
31) Emergency push button ( 31 Fig. 13)
Must be used only in emergency situation.
This button, if pressed, (1 Fig. 32), contemporarily cuts
off all activated function. Moreover an acoustic and light
warning signal is continously given (Fig. 28) until the
emergency button is disingaged.
To make this operation the p. button must be rotated
clockwise as shown in the Fig. 32. After this all the
operations must be repeated from the beginning.
Fig. 28
Fig. 29
Fig. 30
Fig. 31
Fig. 32
