Timing of the augers is accomplished by rotating one
auger in respect of the other to reach of the relative
conditions at two zones like of succession specified.
Remember that the words “right” and “left” are those
indicated in Fig. 45.
5.2.1 Adjustment of the augers
Starting from the transmission auger side and following
the external auger profile, there is a variation of the
winding profile. (see Fig. 46 line CD).
That is with the lines in vertical position Fig. 46 turn the
right auger counter-clockwise, positioning the CD line
(see Fig. 47), in a such way that is moved of 180, as
regards the position preceding, (therefore will result
toward the lower part turned).
Besides verify that the point E of Fig. 48 falls to halt in
proximity of the FG pull.

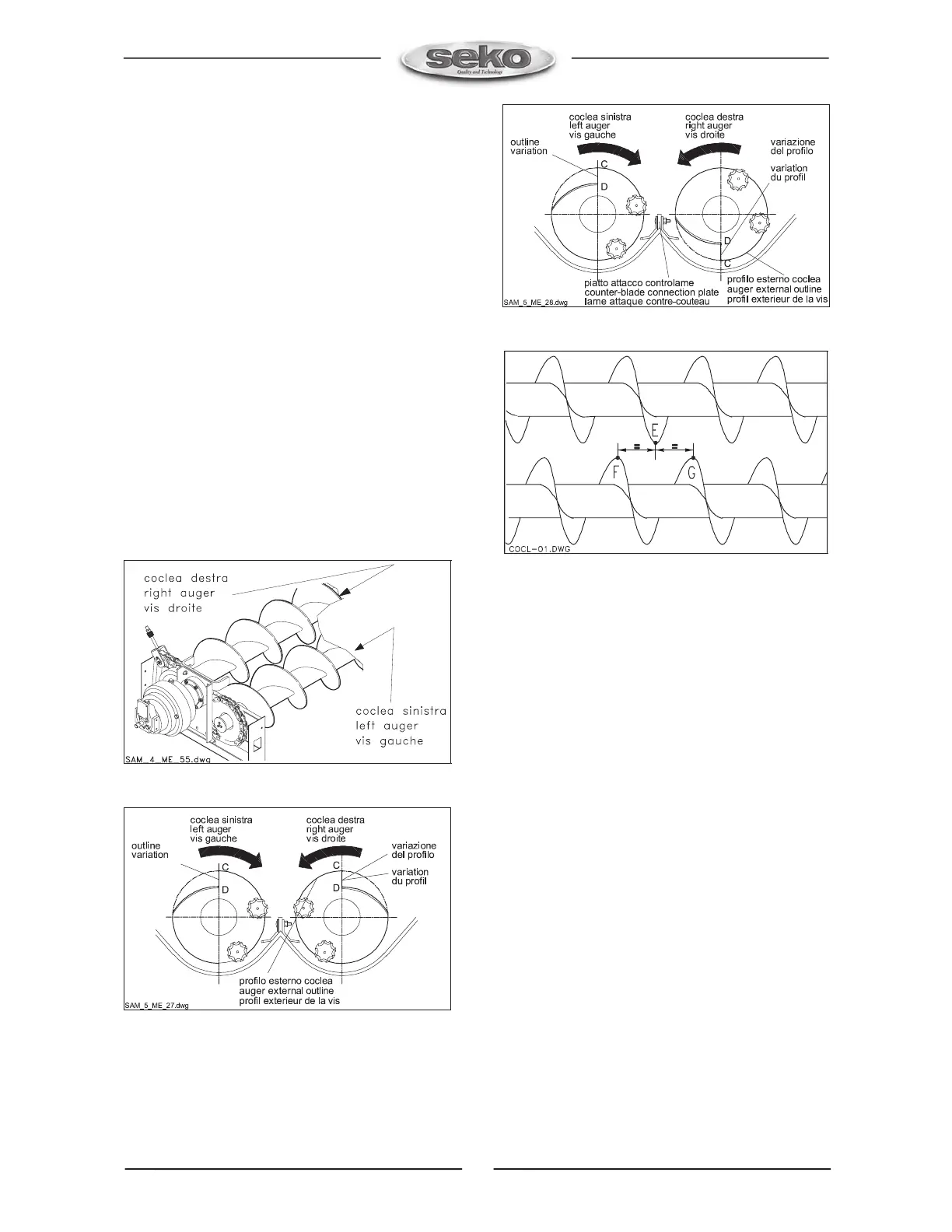

Fig. 45
Fig. 46
Fig. 47
Fig. 48
