SP PRO Three Phase
Installation Notes
System – Multiple SP PRO Charging

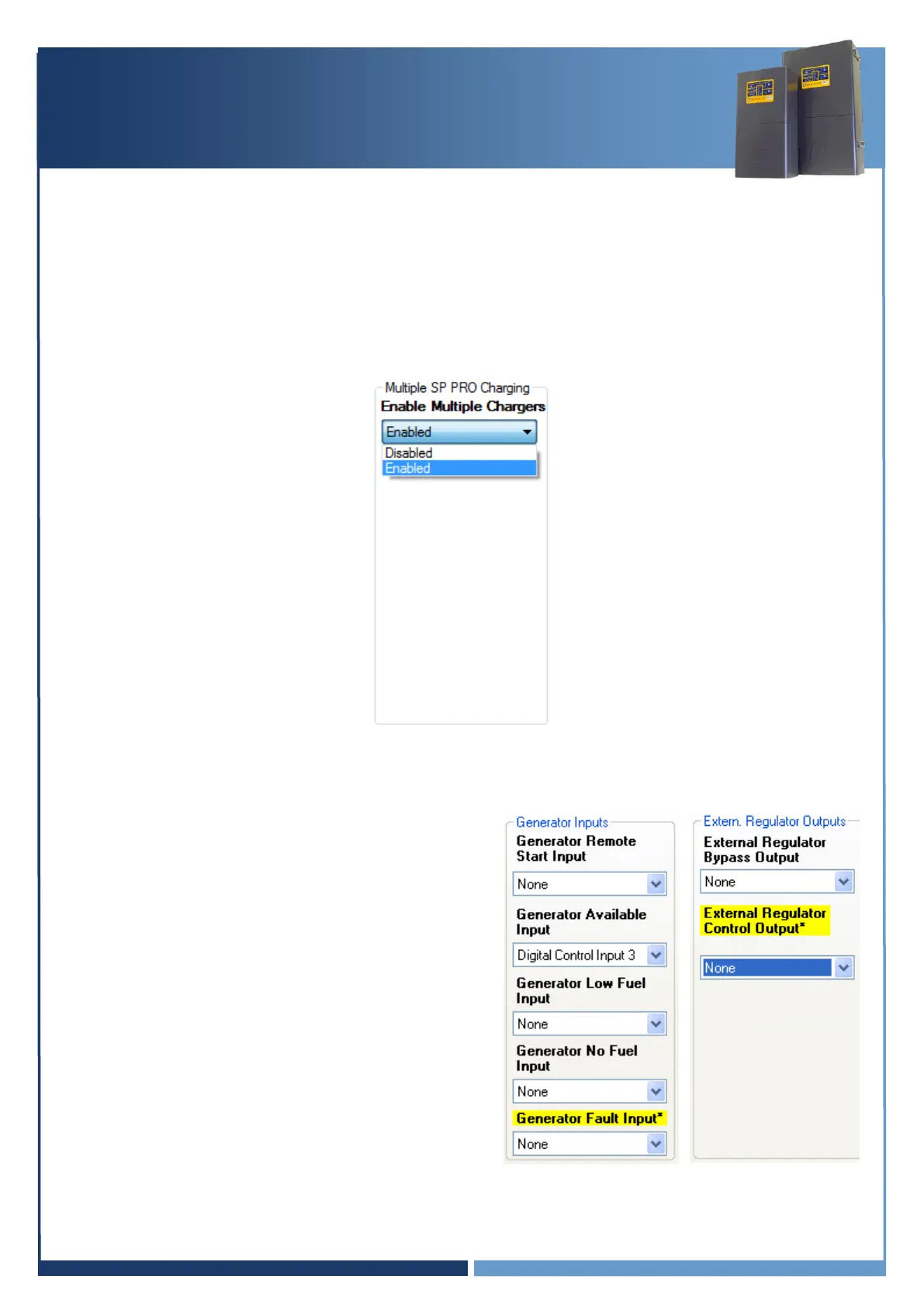

In order for multiple SP PROs (as in a three phase system) to share the charging of the battery
bank, it is necessary to enable the multiple chargers setting.
Disabled: SP PRO is set for normal single phase, single SP PRO operation.
This setting is
not used in a three phase system.
Enabled: SP PRO is set to share the charging with the other SP PROs.
Charge Stage Linking
Each SP PRO must be configured to accept the link signals.
Clear the following Inputs and Outputs :
Generator Fault Input – None
External Regulator Control Output – None
