3-2. Functional Description
A. Power On
When the all cable connections are completed, switch on
with the “Power Switch” button on the top of the controller.
◆
The “Home position” means antenna completely folded down to the body part which is the basic position for
functioning.
If the antenna was at home position, “Home status” light
will be solid on to show it is ready to use.
If the antenna was not in the home position, “Home status”
light will flash, and the antenna will return to the home
position within a maximum 2 minutes. Then will be solid
on.

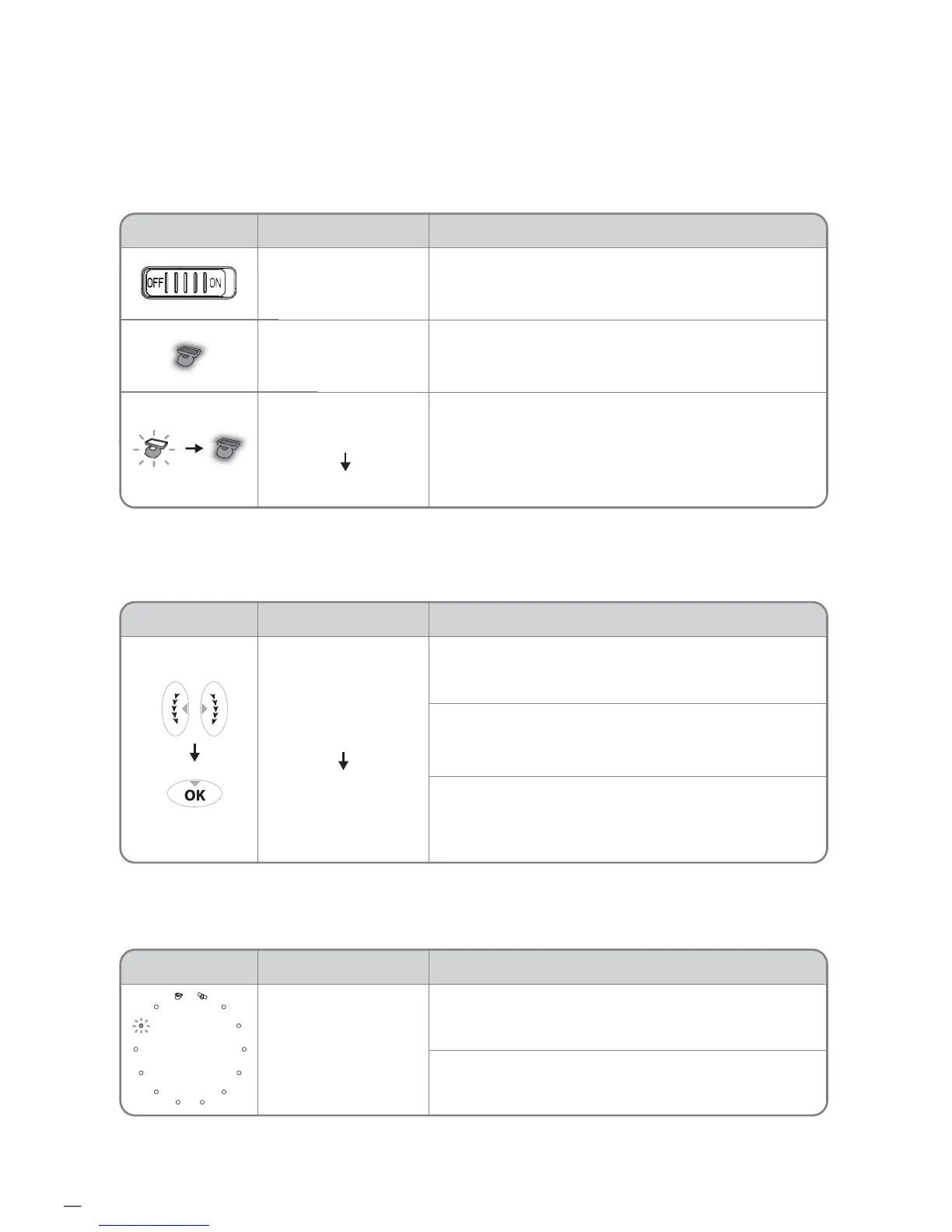

Function Description
“Power” Switch
"Home Status"
light Flashing
Turning into "ON"
"Home Status" light
Stand By "ON"
Operation
Once antenna and controller are connected, you can select
& change the satellite as you desire.
Select the preferring satellite using the “CCW / CW”
buttons, then press the “OK” button to accept the setting.
If you select the wrong satellite, you can re-search target
satellite using the “CCW / CW” button, then press the “OK”
button to accept the new setting.
i.
ii.
iii.
After the satellite selection, “Home Status” light will go off
and the LED light of the selected satellite will start flashing.
Once selected satellite has been found, the LED light of the
satellite will become solid.
Function Description
“Satellite” light
Operation
i.
ii.
i.
ii.
iii.
Function Description Operation
B. Selecting the satellite
“OK” Button
“Satellite
CCW / CW button” Light
C. Searching the satellite
To Next Page
